HSI1! First 30m Candle Strategy (15m Chart)## HSI1! First 30-Minute Candle Breakout Strategy (15m Chart) — Description
### Overview
This strategy is designed for trading **Hang Seng Index (HSI) Futures** on a 15-minute chart. It uses the price range established during the first 30 minutes of the Hong Kong main session (09:15–09:44:59) to define key breakout levels for a systematic trade entry each day.
### How the Strategy Works
#### 1. Reference Candle Period
- **Aggregation Window:** The strategy monitors the first two 15-minute bars of the session (09:15:00–09:44:59 HKT).
- **Range Capture:** It records the highest and lowest prices (the "reference high/low") during this window.
#### 2. Trade Setup
- After the 09:45 bar completes, the reference range is locked in.
- Throughout the rest of the trading day (within session hours), the strategy looks for breakouts beyond the reference range.
#### 3. Entry Rules
- **Long Entry (Buy):**
- Triggered if price rises to or above the reference high.
- Only entered if the user's settings permit "Buy Only" or "Both".
- **Short Entry (Sell):**
- Triggered if price falls to or below the reference low.
- Only entered if the user's settings permit "Sell Only" or "Both".
- **Single trade per day:**
- Once any trade executes, no additional trades are opened until the next session.
#### 4. Exit Rules
- **Take Profit (TP):**
- Target profit is set to a distance equal to the initial range added above the long entry (or subtracted below the short entry).
- Example: For a 100-point range, a long trade targets entry + 100 points.
- **Stop Loss (SL):**
- Longs are stopped out if price falls back to the session's reference low; shorts are stopped out if price rallies to the reference high.
#### 5. Session Control
- Active only within the regular day session (09:15–12:00 and 13:00–16:00 HKT).
- Trade tracking resets each new trading day.
#### 6. Trade Direction Manual Setting
- A user input allows restriction to "Buy Only", "Sell Only" or "Both" directions, providing discretion over daily bias.
### Example Workflow
| Step | Action |
|---------------------------|-------------------------------------------------------------------------|
| 09:15–09:44 | Aggregate first two 15m candles; record daily high/low |
| After 09:45 | Wait for a breakout (price crossing either the high or the low) |
| Long trade triggered | Enter at the reference high, target is "high + range", SL is at the low |
| Short trade triggered | Enter at the reference low, target is "low - range", SL at the high |
| Trade management | No more trades for the day, regardless of further breakouts |
| End of session (if open) | Trades may be closed per further logic or left to strategy to handle |
### Key Features and Benefits
- **Discipline:** Only one trade per day, minimizing overtrading.
- **Clarity:** Transparent entry/exit rules; no discretionary execution.
- **Flexibility:** User can bias system to buy-only, sell-only, or allow both, depending on trend or personal view.
- **Simple Risk Control:** Pre-defined stop loss and profit target for every trade.
- **Works best in:** Trending, breakout-prone markets with a history of impulsive moves early in the session.
This strategy is ideal for systematic traders looking to capture the Hang Seng's early session momentum, with robust rule-based management and minimal intervention.
Médias Móveis

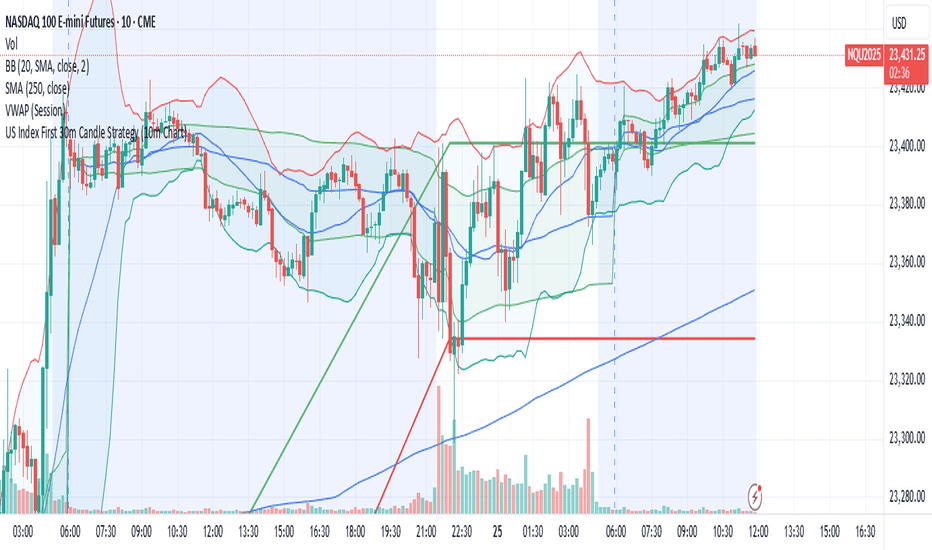

US Index First 30m Candle Strategy (10m Chart)Strategy Description for Publishing
Title: US Index First 30-Minute Candle Strategy (10m Chart)
Overview:
This Pine Script implements a trading strategy designed to capitalize on price movements within the first 30 minutes of the U.S. stock market opening. It is specifically tailored for use on a 15-minute chart and is optimized for trading U.S. indices during regular market hours.
Features:
Session Time Configuration: The strategy operates within the U.S. market hours, specifically from 9:30 AM to 4:00 PM (Eastern Time).
First 30-Minute Candle Aggregation: The script identifies the high and low of the first 30-minute candle, which is considered a critical time frame for market momentum.
Single Trade Per Day: To minimize risk, the strategy is designed to execute only one trade per day based on the established range of the first 30 minutes.
Dynamic Trade Conditions: Buy and sell signals are generated when the price breaks above the high or below the low of the first 30-minute candle, with defined stop-loss and take-profit levels based on a customizable risk-reward ratio.
How It Works:
Initialization:
At the start of each trading day, the script resets the high and low values for the first 30 minutes.
Range Locking: After the first 30 minutes, the high and low values are locked, allowing for trade entries based on these levels.
Trade Execution:
Long Entry: Triggered when the price moves above the locked high.
Short Entry: Triggered when the price drops below the locked low.
Risk Management: Each trade comes with a stop-loss and take-profit mechanism to manage potential losses and secure profits.
Visuals:
The script also plots the locked high and low levels on the chart, providing a visual reference for traders.
Conclusion:
This strategy leverages the volatility often seen in the first 30 minutes of trading, aiming to capture significant price movements while maintaining a disciplined trading approach. It is suitable for traders looking to implement a systematic strategy based on early market behavior.
Usage:
To use this strategy, simply add the script to your TradingView chart, set your desired parameters, and monitor for trade signals during the specified market hours. Adjust the risk-reward ratio as needed to align with your trading style.
5 MACD razi)• MACD confirmation to reduce false signals
• Strategy-ready: includes TP and SL
• Suitable for scalping and swing trades
• Non-repainting logic

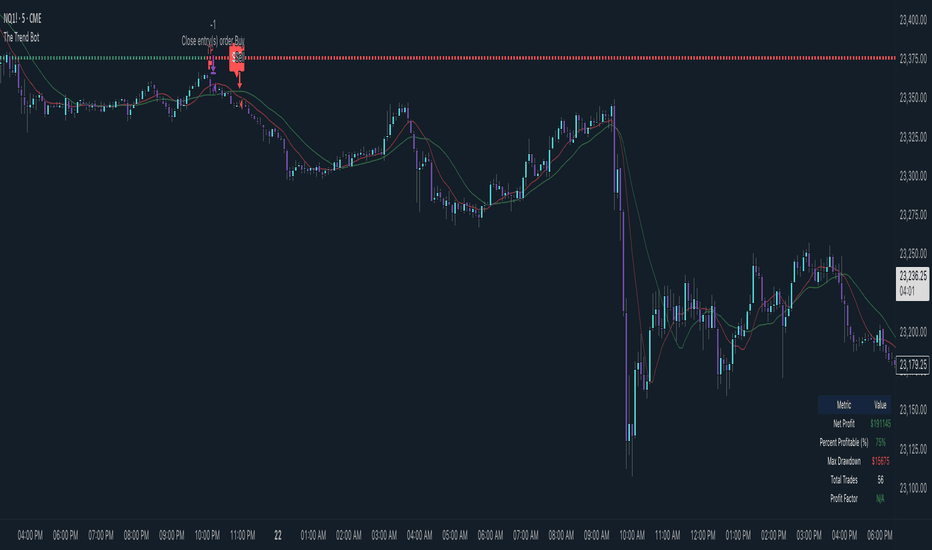

The Trend Bot🤖 The Trend Bot — Advanced Trend Following Strategy
The Trend Bot is a sophisticated algorithmic trading strategy designed to capitalize on market trends by combining multiple timeframe analysis with dynamic signal generation. This strategy is built for traders who want to follow the path of least resistance while maintaining disciplined risk management.
✨ Key Features:
Multi-Timeframe Confluence : Utilizes higher timeframe trend analysis to filter trades and ensure alignment with the broader market direction
Dynamic Signal System : Generates precise entry signals based on momentum shifts and trend confirmation
Intelligent Take Profit : Automatically identifies optimal exit points based on trend reversal patterns
Real-Time Performance Tracking : Built-in performance table displaying key metrics including net profit, win rate, maximum drawdown, and profit factor
Customizable Visual Elements : Fully customizable colors and display options for personalized chart presentation
📊 What It Does:
The Trend Bot monitors market structure and momentum to identify high-probability trading opportunities. It combines short-term price action signals with longer-term trend analysis to ensure trades are taken in the direction of the prevailing market trend. The strategy automatically manages both entries and exits, removing emotional decision-making from your trading process.
🎯 Perfect For:
Swing traders looking for trend-following opportunities
Traders who prefer systematic, rule-based approaches
Those seeking to reduce emotional trading decisions
Both manual and automated trading setups
⚙️ Customization Options:
Adjustable timeframe filters for different trading styles
Customizable visual alerts and notifications
Flexible display settings for optimal chart presentation
Color-coded trend and signal visualization
📈 Built-in Analytics:
Track your strategy performance with real-time metrics including profit factor, win rate, total trades, and maximum drawdown — all displayed in an elegant, customizable table directly on your chart.
Note: Past performance does not guarantee future results. Always test strategies thoroughly and manage risk appropriately.
ZYTX GKDDThe ZYTX High-Sell Low-Buy Indicator Strategy is a trend-following indicator that integrates multiple indicator resonances. It demonstrates the perfect performance of an automated trading robot, truly achieving the high-sell low-buy strategy in trading.

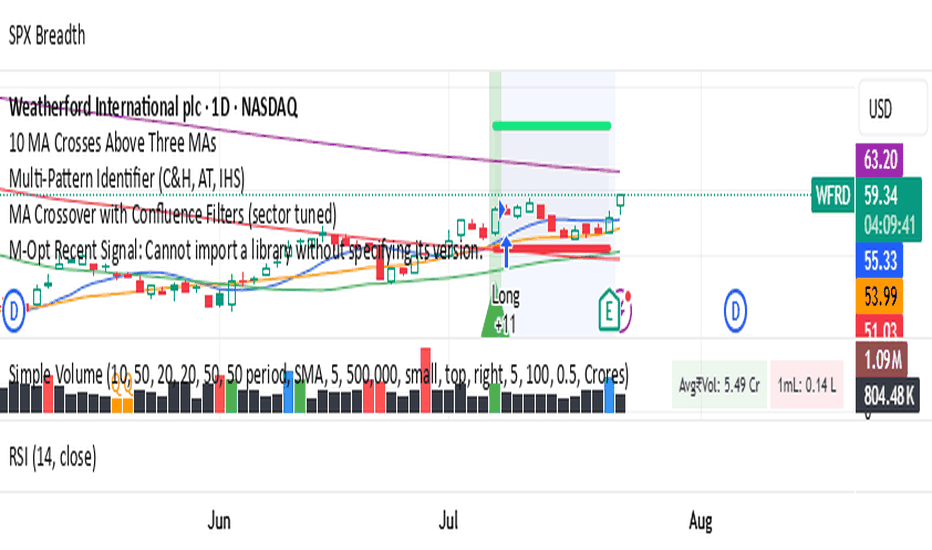

MA Crossover with Confluence Filters (sector tuned)The core belief of this strategy is that a stock making a strong upward move is more likely to continue in that direction if the move is confirmed by multiple other factors. This "confirmation" from different indicators is using the Momentum Optimized Strategy Preset. By waiting for a signal confirmed by high volume, rising volatility, a strong long-term trend, and healthy momentum, we aim to increase the probability of a successful trade.

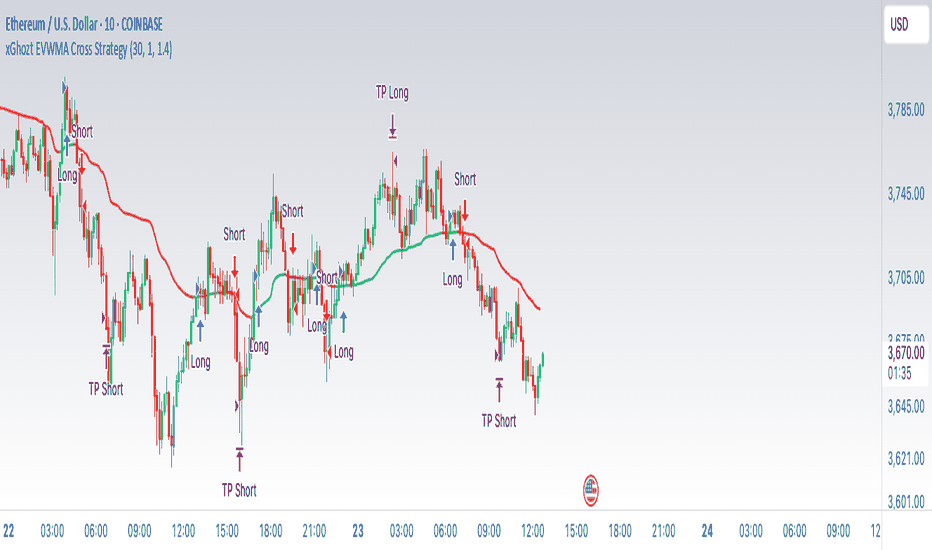

xGhozt EVWMA Cross StrategyThis strategy leverages a single **Elastic Volume Weighted Moving Average (EVWMA)** to identify trend-following opportunities. It generates trade signals when the asset's **closing price crosses the EVWMA**.
