Confluence Trend Matrix [NQ Labs]
Confluence Trend Matrix
- The Confluence Trend Matrix combines four independent trend signals into a single confluence score, ranging from -4 (full bearish agreement) to +4 (full bullish agreement). Instead of relying on one indicator in isolation, it measures how many independent factors currently agree on trend direction — the idea being that alignment across multiple methods is more informative than any single signal alone.
The four factors:
- Each factor scores +1 (bullish), -1 (bearish), or 0 (neutral):
EMA Structure — Evaluates price position relative to a fast and slow EMA. Scores bullish only when price is above the fast EMA and the fast EMA is above the slow EMA (clean uptrend structure), and mirrors for downtrends. Mixed conditions score neutral.
SuperTrend — Uses the SuperTrend direction (ATR-based) as a trend-following component. Bullish when SuperTrend is below price, bearish when above.
ADX-Gated Direction — Takes directional bias from DI+/DI-, but only counts it when ADX is above a strength threshold. In weak, directionless conditions this factor stays neutral, which helps filter out chop.
Higher-Timeframe Trend — Compares the higher-timeframe close against a higher-timeframe EMA, using confirmed HTF bars to avoid repainting. This anchors the lower-timeframe read to the broader trend.
How it's displayed:
Confluence Band — An ATR envelope around price that colors according to the aggregate score. The band grows more opaque as agreement strengthens toward ±4, giving an at-a-glance read of trend conviction. Band width is adjustable via the ATR multiplier.
Dashboard Table — A compact panel breaking down each of the four factors individually, plus the net score, an overall strength label, and net bias. This shows not just what the score is, but which specific factors are driving it.
Background Tint — A subtle highlight when confluence reaches maximum agreement (±4).
Alerts:
- Confluence flip (crossing between bullish and bearish territory)
- Maximum confluence reached (+4 or -4)
Settings:
- All factor parameters are adjustable — EMA lengths, SuperTrend factor and ATR period, ADX length and threshold, higher timeframe, and HTF EMA length — so the tool can be tuned to different markets and timeframes. Visual options include band width, transparency, table position, and colors.
Notes:
- This indicator is a trend-analysis and confluence-visualization tool. It does not generate buy or sell recommendations and makes no claim about future performance. It is intended as one input within a broader analysis process, not as a standalone system. As with any indicator, results vary across markets, timeframes, and conditions — test thoroughly before relying on it.
Open-source and free to use.
Feedback and suggestions are welcome. Indicador
Indicador
Indicador
Standing Wave Phase Coherence [JOAT]STANDING WAVE PHASE COHERENCE
A phase-coherence engine that asks a question almost no public indicator can answer: are the LTF and HTF oscillators in phase or out of phase ? Two oscillators that move together (peaks and troughs aligned) form a standing wave — a state of constructive interference where the trend is amplified. Two oscillators that move opposite (peaks aligned with troughs) form an anti-standing wave — a state of destructive interference where a reversal is forming. Standing Wave Phase Coherence measures phase, computes the coherence between the two timeframes, and surfaces a single number bounded in that tells you which regime you are in.
Phase, not just direction
A moving average tells you "where price is sitting". A momentum oscillator tells you "which way it is moving". Phase is the location inside the cycle — are we approaching a peak, leaving a peak, approaching a trough, leaving a trough? Two oscillators on different timeframes can be:
In phase — both rising or both falling at the same rate of cycle progression. Constructive interference. Trend amplifies.
Anti-phase — one rising, the other falling at the same cycle rate. Destructive interference. Reversal forms.
Decoherent — phases are uncorrelated. The wave structure is breaking down. No directional edge from coherence.
The script estimates phase from each timeframe's RSI series (both legs at the same RSI length for fair comparison), differences the phase smoothly, then takes the cosine of the phase difference — which is exactly the quantum-mechanical coherence metric on a scale.
Non-repainting HTF construction
The HTF leg uses request.security with lookahead_on AND a offset on the expression — the only non-repainting form per Pine v6 docs. This is exposed as a toggle but ON by default; the warning in the input tooltip explains the trade-off (turn off only for research, never live).
Three thresholds, three states
Coherence > +0.70 (configurable) — IN PHASE . Standing wave constructive. Trend amplifies. Bull-palette background tint.
Coherence < −0.70 — ANTI PHASE . Standing wave destructive. Reversal forms. Bear-palette background tint.
|Coherence| < 0.30 (decoherent band) — DECOHERENT . No standing wave. Mid-palette neutral.
In between — transitional.
Phase-status arrows print inside the pane at every regime entry, so the chart history shows when each standing wave formed and collapsed.
Visual system
Coherence line with configurable width.
Glow halo — a wider semi-transparent copy of the coherence line below the main line, creating a soft glow effect.
Background tint by phase status — bull when IN PHASE, bear when ANTI PHASE, none when decoherent. Transparency configurable.
Threshold lines at ±0.70 (toggleable).
Zero line .
Fill between threshold and ±1 — soft bull / bear fill highlights the active phase zone so it is immediately obvious which side is engaged.
Phase status arrows inside the pane on state transitions.
The pane uses the JOAT default palette (cyan-teal bull / magenta bear).
Amplification factor
A separate EMA-smoothed trend amplification factor is computed from the coherence and surfaced in the dashboard. When coherence is sustained high (in-phase), the amplification factor rises — quantifying how much the LTF/HTF agreement is reinforcing the move. Useful as a position-sizing input: bigger amplification = stronger conviction = larger size.
Dashboard
Monospaced table, positionable to any of nine corners. Surfaces:
Current coherence value and bar age.
Phase status (IN PHASE / ANTI PHASE / DECOHERENT) with glyph.
LTF and HTF RSI values.
Phase difference in radians and degrees.
Trend amplification factor (smoothed).
HTF timeframe in use with non-repaint flag.
Alerts
Multiple alert conditions:
Coherence crosses above +0.70 (IN PHASE entry)
Coherence crosses below −0.70 (ANTI PHASE entry)
Coherence returns to decoherent band
Sustained IN PHASE (held above threshold for N bars)
Sustained ANTI PHASE
How to read it
Three reads, in order of conviction:
Sustained IN PHASE — the highest-conviction trend read. LTF and HTF oscillators are decisively moving together. This is the regime in which momentum tools have their largest edge.
Entry into ANTI PHASE — the reversal warning. The two timeframes have rotated opposite each other; whichever direction LTF is moving, HTF is opposing. Often precedes meaningful reversals.
Decoherent zone — stand-aside signal. The wave structure has broken down. Coherence-based reads are not actionable; switch to a regime-classification tool (FDI, Hurst, Entropy).
The cleanest workflow: only take trend trades when IN PHASE; only take reversal trades when ANTI PHASE; do nothing when DECOHERENT.
Suggested settings
Defaults (RSI 14, HTF 4H, phase smoothing 3, coherence smoothing 8, ±0.70 thresholds, ±0.30 decoherent band) are tuned for 15m–1H charts. The HTF should always be greater than or equal to the chart timeframe; mismatching produces meaningless phase reads. For HTF (4H+ chart timeframes) raise HTF to Daily and consider the LTF/HTF coherence as a daily-vs-weekly read.
Originality
The implementation — the dual-timeframe RSI phase estimator, the smoothed phase-difference cosine coherence (quantum-style metric), the non-repainting HTF request with -offset + lookahead_on pattern, the three-threshold phase classifier with decoherent band, the trend amplification factor formulation, the glow-halo line render, and the pane-overlay phase-status arrows — is JOAT-original. No third-party code reused. The notion of phase coherence between timeframes as a market regime metric is the original quantitative contribution, borrowed conceptually from optical and quantum physics.
Limitations
Phase estimation from discrete bar data is inherently noisy on short windows; the smoothing inputs (phase EMA and coherence EMA) exist to address that — over-smoothing destroys phase information, so the defaults are intentionally light. The HTF request is non-repainting in the useStrictHtf = ON configuration; do not turn it off in live trading. The decoherent band is a heuristic to avoid acting on noise reads; widen it on instruments with naturally choppy oscillator structure.
—
-made with passion by jackofalltrades
Indicador
Indicador
BreakoutBreakout is an overlay indicator for identifying pre-breakout trade context using supply/demand zones, higher-timeframe alignment, moving-average structure, and confluence scoring.
This script is for analysis and planning only. It does not place orders or guarantee results.
What it does
Breakout helps visualize potential long and short setups before price breaks out of a key zone. It combines:
- Key magnet supply/demand zones (strongest reaction levels only)
- HTF trade zones auto-anchored by chart timeframe
- Pre-trade setup boxes with entry, stop, and target
- Diamond markers for high-confluence turning points
- Liquidity levels for potential sweep/SFP context
- Optional info panel with bias, levels, and active setup details
How it works
Magnet zones: pivot highs/lows cluster into levels. Levels price revisits gain strength. Only the strongest are drawn.
HTF trade regime: each chart timeframe uses two higher anchor timeframes. Long ideas can be filtered to HTF demand zones; shorts to HTF supply zones. Zones use confirmed HTF swing highs/lows with ATR-based width and reach.
Setup engine: setups form when zone context, trend/MA structure, confidence score, and cooldown align. Stops use risk percent, MA support/resistance, swing levels, and a max distance cap. Targets use a configurable minimum risk/reward.
Diamond signals: require structure (SFP, reversal, or MA setup), zone context, and supporting momentum/trend. Optional volume spike and RSI divergence add confluence. Not every pivot prints a diamond.
Volume and divergence: abnormal volume spikes (relative volume and z-score) can combine with RSI divergence in diamonds and setup scoring.
MTF data uses request.security() with barmerge.lookahead_off to avoid lookahead on higher-timeframe context.
How to use
1. Add Breakout to your chart.
2. Choose your execution timeframe.
3. Keep HTF zone filter on for higher-timeframe alignment.
4. Wait for price at HTF zone plus key magnet zone, then diamond or setup box with confidence at or above Min Confidence.
5. Use entry, stop, and target from the active setup box for planning.
6. Manage risk with your own rules.
Main settings
- Risk: risk per trade, min R/R, max hold bars
- Filters: min confidence, approach distance, cooldown, volume, vol spike and divergence
- HTF zones: trade inside HTF S/D only, auto anchors, zone width and reach
- Display: zones, setups, liquidity, labels, info panel, EMAs, diamond spacing
Alerts
- Breakout Long Setup
- Breakout Short Setup
- Breakout Approaching Demand
- Breakout Approaching Supply
Alerts reflect script conditions at alert time. They are not trade recommendations.
Disclaimer
Educational and informational use only. Not financial advice. Trading involves risk, including loss of capital. Past results do not guarantee future performance. Use at your own discretion. Indicador
Indicador
Multi MA Framework [Gabremoku]Multi MA Framework is a flexible multi-moving-average overlay built for traders who want a clean and fully customizable MA workspace directly on the chart.
The indicator lets you plot up to four independent moving averages, each with its own:
visibility toggle
length
MA type
color
This makes it useful for traders who want to combine fast and slow averages, compare SMA vs EMA behavior, or build a personalized trend framework without loading multiple separate indicators.
What it shows
📈 Up to 4 Moving Averages — each line can be configured independently and displayed only when needed.
⚙️ SMA or EMA per line — choose the moving average type separately for each MA. SMA gives equal weight to all values in the period, while EMA gives more weight to recent prices and typically reacts faster to change.
🏷️ End Labels — optional right-side labels show each MA name, type, and length.
☁️ Cloud Fills — optional fills between:
MA 1 / MA 2
MA 3 / MA 4
These clouds help visualize alignment and separation between faster and slower averages.
Core idea
This script is designed as a moving average framework, not a rigid strategy.
Moving averages are commonly used to:
identify trend direction
smooth noisy price action
monitor dynamic support and resistance
compare short-term and long-term market structure
By allowing different lengths and SMA/EMA choices on every line, the script makes it easy to create your own structure, for example:
fast trend stack
swing trend map
long-term bias model
crossover-based workflow
How to use
A practical way to use the framework is to combine shorter and longer averages.
For example:
a shorter MA can track immediate momentum
a medium MA can define swing direction
a longer MA can define higher-level trend bias
When multiple moving averages align in the same direction, traders often interpret that as stronger trend structure. Crossovers between faster and slower averages are also widely used to monitor possible trend shifts, although they are lagging by nature.
Example setups
Here are some common ways this framework can be configured:
Trend stack: 10 EMA / 20 EMA / 50 EMA / 200 SMA
Swing trader view: 20 EMA / 50 SMA / 100 SMA / 200 SMA
Minimal structure: show only 2 lines and enable one cloud
Cross comparison: use SMA on one line and EMA on another with the same or similar length to compare responsiveness
Because EMA reacts faster and SMA is smoother, combining both can help balance responsiveness and stability.
Features
✅ Up to 4 fully independent moving averages
✅ SMA or EMA selection for each line
✅ Custom length for each MA
✅ Custom color for each MA
✅ Visibility toggle for every line
✅ Adjustable line width
✅ Optional right-side end labels
✅ Optional MA1/MA2 cloud fill
✅ Optional MA3/MA4 cloud fill
✅ Clean chart overlay design
Notes
This indicator is best used as a custom trend structure tool rather than a standalone signal engine. Moving averages are inherently lagging indicators, so they are most effective when used to define context and trend bias rather than predict reversals on their own.
Author: Gabremoku
Pine Script v6 Indicador
EMA's [Ordinary Trader]EMAs by Plots two parallel stacks of three EMAs — one anchored to a Higher Timeframe of your choice, one following the chart's current timeframe. Built around the Ordinary Trader methodology, where the 15-minute 50 / 100 / 300 EMA stack acts as a higher-timeframe directional filter while trading on lower timeframes.
**WHAT YOU SEE ON THE CHART**
Six EMAs total, split into two groups:
- **HTF EMAs** — three EMAs locked to a higher timeframe of your choice (default 15-minute). They stay anchored to 15-minute data even when you drop the chart to 1m, 3m, or 5m. Drawn as **thick** lines.
- **LTF EMAs** — three EMAs that follow the chart's current timeframe (or any specific lower timeframe you pin them to). Drawn as **thin** lines.
Same colour for the same EMA length across both groups: 50 = sage green, 100 = terracotta orange, 300 = purple-grey. Thickness tells you which timeframe you're looking at; colour tells you which EMA length.
**HOW TO USE IT**
The default setup is the Ordinary Trader 15-minute filter: HTF set to 15-minute, LTF following the chart. Pull up a 1m, 3m, or 5m chart and you'll see both groups at once — the thick lines are your 15-minute anchor, the thin lines are your chart-timeframe stack for entries.
By default the 50 and 100 EMAs are on in both groups; the 300 EMA is off but available. Flip it on in the Settings panel if you want the full stack.
**AUTO-HIDE FOR THE LTF GROUP**
When your chart timeframe is equal to or higher than the HTF timeframe, the LTF group hides automatically. So on a 15-minute chart (with HTF still at 15-minute) only the HTF group shows — no point drawing the LTF stack on top of an identical HTF stack. Same on the 1-hour, daily, or higher.
**VISUAL SMOOTHING**
When a higher-timeframe EMA is plotted on a lower-timeframe chart, it naturally looks stepped — each new HTF bar updates the EMA in one chunk, so the line moves in jumps rather than smoothly. The Visual Smoothing option (on by default) applies a light smoothing pass so the line reads cleanly on lower-timeframe charts. It trades a tiny amount of lag for a cleaner look — turn it off if you'd rather see the raw, stepped HTF values.
**SETTINGS**
- **General** — LTF Timeframe, HTF Timeframe, Plot Style (Line / Stepline), Visual Smoothing on/off + length
- **HTF EMAs** — toggle, length, and price source for each of the three HTF EMAs
- **LTF EMAs** — toggle, length, and price source for each of the three LTF EMAs
**NOTES**
- Pairs naturally with the other Ordinary Trader-family indicators (STRATEGY, ZONES, KEY LEVELS, FVGs). Indicador
[ A L P H A X ] Pulse ScalperAlphaX Pulse Scalper — 4-Layer Confluence Scalping System with ATR Trailing Exits, Squeeze Momentum Detection & Live Scoring Dashboard
AlphaX Pulse Scalper is a professional-grade multi-confluence scalping system engineered to fire only when four independent technical engines simultaneously agree on direction. Unlike single-indicator systems that generate signals from one source of information, Pulse Scalper runs a live scoring gate across an EMA Ribbon, a Squeeze Momentum engine, a Volume Delta pressure model, and a VWAP Deviation filter — every bar, on every candle. A signal only reaches your chart when at least three of the four layers confirm. The result is a dramatically lower signal count with a dramatically higher average quality per signal. Designed for active scalpers on crypto, forex, gold, and indices across the 1-minute to 15-minute timeframes.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔬 The 4-Layer Confluence Engine — How It Works
Most scalping indicators fire from a single calculation — a crossover, a threshold breach, a momentum flip. The problem is that any single calculation is easily fooled by noise, spikes, and choppy price action. AlphaX Pulse Scalper is built on a fundamentally different architecture: four completely independent layers, each measuring a different dimension of market behavior , each casting a vote on every bar. Only when enough votes align does a signal fire.
This is not a filter applied on top of a signal. The confluence is the signal.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📐 Layer 1 — EMA Ribbon (Trend Structure)
The first layer is a triple EMA ribbon using a Fast EMA (default: 8), Slow EMA (default: 21), and Signal EMA (default: 50). This layer answers a single question: is the market in a clean, structured trend right now?
Bull condition: Fast EMA above Slow EMA, Slow EMA above Signal EMA, and price closing above all three — a full stack alignment confirming upward momentum structure.
Bear condition: The full inverse — Fast below Slow below Signal, with price below all three.
Why this matters: The ribbon does not react to a single crossover. All three EMAs must be stacked in order and price must be on the correct side. This eliminates the vast majority of false crossover signals that plague simple dual-EMA systems. The ribbon is also plotted directly on the chart as a gradient-filled channel — bull fills in yellow-green, bear fills in red — giving you immediate structural context at a glance.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚡ Layer 2 — Squeeze Momentum (Energy Detection)
The second layer is built on the TTM Squeeze principle — one of the most reliable pre-breakout detection systems in technical analysis. It works by measuring the relationship between two volatility envelopes: Bollinger Bands and Keltner Channels.
Squeeze state: When the Bollinger Bands compress inside the Keltner Channels, the market is coiling — volatility has contracted and energy is building. These periods of compression historically precede the strongest directional moves. The squeeze state is displayed as a subtle orange background tint on the chart, and flagged on the dashboard as ⚡ BUILDING — giving you advance warning that a breakout is loading before it happens.
Momentum direction: The raw momentum value is calculated using a linear regression of price position relative to the midpoint of the recent high-low range. When this value is positive and rising , the squeeze is releasing to the upside. When negative and falling , it is releasing to the downside.
Layer 2 votes bull when: Momentum value is above zero and accelerating upward.
Layer 2 votes bear when: Momentum value is below zero and accelerating downward.
Why this matters: This layer catches the energy behind a move, not just the direction. A breakout with strong squeeze momentum behind it is fundamentally different from a breakout on low momentum — and this layer distinguishes between the two on every bar.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📊 Layer 3 — Volume Delta (Institutional Pressure)
The third layer is a proprietary volume delta model that estimates the real buying and selling pressure behind each candle — without requiring exchange-level order flow data.
How it works: Each candle's volume is split into bullish and bearish components based on the candle's close position within its high-low range. A candle closing near its high attributes most of its volume to buyers; a candle closing near its low attributes most to sellers. These estimates are smoothed using an EMA to eliminate single-bar noise. A secondary OBV slope (On-Balance Volume) is calculated over the configured lookback and used as an independent confirmation of the dominant pressure direction.
Layer 3 votes bull when: The bull volume EMA exceeds the bear volume EMA, the delta EMA is positive, and the OBV slope is rising — all three volume signals agree on buying pressure.
Layer 3 votes bear when: The full inverse — bear volume dominates, delta EMA is negative, OBV slope is falling.
Why this matters: Price can move in any direction on any bar. Volume delta tells you whether real capital is flowing in the direction of that move. A price breakout accompanied by genuine volume pressure is a high-confidence breakout. A price breakout on weak or opposing volume is a trap. This layer is the system's protection against price manipulation and false breakouts.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📡 Layer 4 — VWAP Deviation (Institutional Bias)
The fourth layer uses the Volume Weighted Average Price (VWAP) with dynamically calculated standard deviation bands to identify where price stands relative to institutional value.
Band structure: Two band pairs are calculated — ±1σ and ±2σ — using a volume-weighted standard deviation formula applied across the session. These bands represent statistically significant deviations from the session's fair value anchor.
Layer 4 votes bull when: Price is above VWAP (institutional bias is bullish) but has not yet extended beyond the +2σ band — confirming trend direction without chasing a stretched, overextended move.
Layer 4 votes bear when: Price is below VWAP but has not extended beyond the -2σ band.
Why this matters: VWAP is the single most widely watched intraday reference level used by institutional desks, market makers, and algorithms. Price above VWAP means institutions are net buyers for the session. Price below means net sellers. The 2σ filter prevents the system from entering during climactic exhaustion moves — precisely the moments when reversal risk is highest and reward is lowest.
The bands are plotted directly on the chart — VWAP as a purple line, ±1σ as dotted yellow-green and red circles, ±2σ as solid outer boundaries — so you always have the full VWAP context visible alongside your signals.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🧠 The Confluence Gate — Live Scoring System
On every bar, each of the four layers independently casts its vote. The results are tallied into a live confluence score displayed in real time on the dashboard.
Bull score: 0–4 points. One point for each layer voting bullish.
Bear score: 0–4 points. One point for each layer voting bearish.
Signal fires when: The score meets or exceeds the configured minimum (default: 3 of 4), the ADX filter confirms a trending market, and the session filter confirms active market hours.
Score thresholds and what they mean:
4 / 4 — maximum confluence. All four independent engines agree. The highest-conviction setup the system can produce. Enter full size.
3 / 4 — strong confluence. Three of four layers aligned. The default threshold — high quality with reasonable frequency.
2 / 4 — weak confluence. Available if you lower the minimum, but not recommended. Two engines agreeing is not meaningful convergence.
The confluence score is printed directly on the signal label (e.g., 3/4 or 4/4 ) so you know at a glance exactly how strong every setup is at the moment it fires. The dashboard continuously displays the live bull and bear scores — even between signals — so you can watch confidence building in real time before the signal appears.
Edge triggering: Signals only fire on the bar where the score first crosses the threshold — not on every bar the score remains above it. This prevents signal spam during extended trend runs and ensures every triangle on the chart represents a distinct, fresh entry event.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🛡 ADX Filter — Trend Quality Gate
Before any signal reaches the chart, it must also pass the ADX (Average Directional Index) filter . ADX measures the strength of the current trend regardless of direction — a reading below the threshold indicates a choppy, ranging market where trend-following signals have low reliability.
Default threshold: 20. When ADX is below this level, all signals are suppressed — even if the confluence score is 4/4. This is the system's protection against the single most common failure mode of scalping indicators: firing confidently into sideways, oscillating price action.
The ADX value and pass/fail status are displayed live on the dashboard so you always know whether the market structure supports trading at any given moment.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🕐 Session Filter — Active Hours Gate
The Session Filter restricts signals to a configurable active trading window (default: 07:00–20:00 exchange time). Outside this window, signals are suppressed regardless of confluence score.
Why this matters for scalpers: Low-volume pre-market and post-market hours produce the most misleading signals of any period. Spreads widen, liquidity thins, and momentum moves that look compelling on the chart are frequently reversed the moment the main session opens. The session filter eliminates this entire class of false setups automatically.
The dashboard displays a clear ✓ ACTIVE or ✗ OFF-HOURS status so you always know whether the filter is open or closed.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🎯 Dynamic ATR Exit System
AlphaX Pulse Scalper uses a fully dynamic ATR-based exit system with three simultaneously active exit mechanisms — each serving a distinct role in protecting profit.
Stop Loss: Fixed at entry based on the pivot low (bull) or pivot high (bear) minus an ATR buffer (default: 1.2× ATR). Displayed as a solid red line below price for longs, above for shorts. This is your maximum risk boundary — it does not move.
TP1 — Partial Target (50%): Set at 1.8× ATR from entry. When price reaches TP1, scale out 50% of the position and let the remainder run to TP2. A small circle marker appears at the TP1 bar.
TP2 — Full Target: Set at 3.5× ATR from entry. When price reaches TP2, the full position exits and the system resets. A labeled TP marker appears on the chart.
ATR Trailing Stop: The most important of the three. From the moment a trade opens, a trailing stop moves dynamically with price — always positioned 1.5× ATR behind the current bar's low (for longs) or high (for shorts). The trail is displayed as a live orange line on the chart. As price advances in your favor, the trail advances with it. If price reverses and hits the trail before reaching TP2, the trade exits at the trail level rather than waiting to give back all gains.
Why the trailing stop changes everything: Fixed TP levels work in textbook trends. In the real market, strong impulses often exceed TP2 before reversing — and weak impulses stall before even reaching TP1. The ATR trailing stop captures whatever the market gives, without predetermining a ceiling on your profit. In strong trending conditions, a single Pulse Scalper signal with an active trail can run 5–10× ATR before stopping out.
All three exit levels — SL, TP1, TP2, and the trailing stop — are plotted as live lines on the chart as long as a trade is active, then cleared automatically when the position closes.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📊 Live Dashboard
The real-time dashboard displays the complete internal state of the indicator across four sections, updated on every bar.
MARKET
Session — ✓ ACTIVE or ✗ OFF-HOURS. Confirms whether the session filter is open for signals
ADX — live ADX value with ✓ or ✗ pass/fail indicator. Confirms whether market structure is trending strongly enough to trade
CONFLUENCE
L1 EMA Ribbon — current ribbon state: ▲ BULL, ▼ BEAR, or — FLAT
L2 Squeeze Momentum — current momentum state: ⚡ SQUEEZE (building), ▲ BULL, ▼ BEAR, or — FLAT. The squeeze state is the highest-value pre-signal condition the system can display
L3 Volume Delta — current volume pressure: ▲ BULL, ▼ BEAR, or — NEUTRAL
L4 VWAP Deviation — current VWAP position: ▲ ABOVE, ▼ BELOW, or — EXTENDED (price beyond 2σ, filter active)
Bull Score — live 0–4 score for bullish confluence. Background turns yellow-green when threshold is met — the signal is ready to fire
Bear Score — live 0–4 score for bearish confluence. Background turns red when threshold is met
POSITION
Position — current tracked position: ▲ LONG, ▼ SHORT, or — FLAT with background color highlight
Stop Loss — the fixed SL level currently active, color-coded red (bull) or green (bear)
Trail Stop — the current trailing stop level in orange — updates dynamically every bar the trade is open
TP1 (50%) — the first take-profit target currently active
TP2 (full) — the full exit target currently active
Bars in Trade — how many bars the current position has been open
INFO
ATR — current ATR value used for all exit calculations
VWAP — current VWAP price level for the session
Squeeze — ⚡ BUILDING when BB is inside KC (squeeze active), or — RELEASED when the squeeze has fired
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📈 Chart Visual System
Every visual element on the chart serves a specific purpose. There is no decorative clutter.
▲ Triangle (below bar) — bull entry signal. Fires when bull confluence score meets threshold, ADX passes, session is active
▼ Triangle (above bar) — bear entry signal. Fires when bear confluence score meets threshold
Score Label (3/4 or 4/4) — printed beside each signal triangle. The raw confluence count at signal time
EMA Ribbon Fill — yellow-green fill between Fast and Slow EMA during bull structure, red during bear structure. Collapses to gray during neutral
VWAP Line — purple center line marking the session's volume-weighted fair value
VWAP ±1σ Bands — dotted yellow-green and red circles marking the first standard deviation
VWAP ±2σ Bands — solid outer boundaries. Price touching these is the maximum extension zone
Orange Squeeze Background — appears during active squeeze conditions. A visual alert that energy is compressing and a breakout is approaching
Yellow-green background tint — active during open long trades. Confirms trade is live at a glance
Red background tint — active during open short trades
SL Line (red/green) — the fixed stop loss level, active while trade is open
TP1 Line (semi-transparent) — the partial target level
TP2 Line (bright) — the full exit target level
Trail Line (orange) — the dynamic trailing stop, moves with price every bar
TP marker — appears when TP2 is hit. Full exit confirmed
SL marker — appears when stop loss or trailing stop is triggered
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🚀 How to Trade with AlphaX Pulse Scalper — Step by Step
Step 1 — Check the Dashboard Before Every Session
Confirm Session shows ✓ ACTIVE
Confirm ADX shows ✓ — if ADX is below threshold, the market is ranging and no signals will fire regardless of how the layers look
Watch the Squeeze row on the dashboard — ⚡ BUILDING means a breakout setup is forming. This is your highest-alert pre-signal state
Step 2 — Watch the Confluence Scores Build
Monitor the live Bull Score and Bear Score rows in the dashboard. You can watch the scores build in real time, bar by bar, before a signal fires
When a score reaches 3/4 and the background highlights, a signal is imminent or has just fired
A 4/4 score is the highest-quality setup. Prioritize these above all else
Step 3 — Enter on the Signal Triangle
A ▲ triangle below the bar is a long signal. Enter on the close of the signal bar or the open of the next bar
A ▼ triangle above the bar is a short signal. Enter on the same basis
Read the score label — 4/4 signals warrant full position size, 3/4 signals warrant standard or slightly reduced size
Step 4 — Manage with the Live Exit Lines
The SL line is your hard stop. Never move it further away from price
Watch the orange Trail Stop line advance with price as the trade moves in your favor
At TP1, scale out 50% of the position. Move your manual stop to breakeven on the remainder
Let the trailing stop manage the rest — it will exit automatically when momentum exhausts
Step 5 — Exit and Reset
A TP marker on the chart confirms TP2 has been hit. Full exit. Dashboard resets to — FLAT
An SL marker confirms the stop or trail has been hit. Accept the loss and wait for the next setup
After any exit, do not re-enter immediately. Wait for the confluence score to rebuild from zero — this prevents revenge trading into the same noise that stopped you out
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠ Identifying Low-Quality Conditions — When Not to Trade
The system is designed to filter out most low-quality conditions automatically. But understanding what to look for gives you an additional edge.
Stand aside when you see:
ADX ✗ on the dashboard — the market is not trending. Any signal would be a range-bound trade against the system's core design
Dashboard shows — FLAT across all four layers — no layer has a directional conviction. The market has no readable bias
Bull and bear scores both at 1 or 2 — the layers are split. Price is oscillating without commitment in either direction
Session shows ✗ OFF-HOURS — no signals will fire and manual entries carry elevated risk from thin liquidity
Squeeze just released but score is only 2/4 — the squeeze fired but not enough layers confirmed the direction. This is a low-conviction breakout — wait for the next setup
Rapid alternation of ▲ and ▼ triangles — if you see signals in both directions within a short window, the market is too choppy. Increase the ADX threshold in settings or stand aside until a clearer trend develops
What to do:
Wait for the Squeeze dashboard to show ⚡ BUILDING — this is the highest-quality pre-signal state. The best Pulse Scalper setups almost always begin with a squeeze
Wait for ADX to climb back above threshold — a strong trend is forming
Wait for a 4/4 score on the next signal — maximum confluence only, no compromises in a difficult session
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚡ Key Features
🔬 4-layer confluence gate — EMA Ribbon, Squeeze Momentum, Volume Delta, and VWAP Deviation must agree before any signal fires
📊 Live confluence scoring — bull and bear scores update every bar in real time, displayed on the dashboard before the signal appears
⚡ TTM Squeeze detection — Bollinger/Keltner compression identifies pre-breakout coiling with an orange background tint and dashboard flag
📈 Proprietary volume delta model — estimates buying and selling pressure without exchange-level order flow data, confirmed by OBV slope
📡 VWAP with standard deviation bands — ±1σ and ±2σ plotted live, VWAP filter prevents entries during climactic extension moves
🛡 ADX trend quality gate — suppresses all signals during choppy, non-trending market conditions
🕐 Session filter — restricts signals to active market hours, eliminating low-liquidity false setups automatically
🎯 Triple exit mechanism — fixed ATR stop loss, TP1 at 1.8× ATR, TP2 at 3.5× ATR, plus dynamic ATR trailing stop that advances with price every bar
📉 ATR trailing stop — plotted as a live orange line, adapts dynamically to volatility, captures extended runs beyond TP2 in strong trends
🏷 Confluence score label on every signal — 3/4 or 4/4 printed directly on the chart so you know signal quality at a glance
📊 28-row live dashboard — Market, Confluence, Position, and Info sections updated in real time
🔔 9 alert conditions — bull entry, bear entry, TP1/TP2 hits, stop hits, squeeze start, any exit
🎨 Cohesive dual-tone color theme — yellow-green for all bullish elements, red for all bearish elements, orange for squeeze and trail, gray for neutral
⚙ Fully configurable — all EMA periods, squeeze parameters, VWAP multipliers, ADX threshold, confluence minimum, ATR multipliers, session window, and all colors are adjustable from the settings panel
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚙ Settings Reference
EMA Ribbon
Fast EMA — the fastest ribbon line, reacts most immediately to price (default: 8)
Slow EMA — the intermediate ribbon line (default: 21)
Signal EMA — the macro trend anchor. All three must stack in order for a ribbon vote (default: 50)
Show EMA Ribbon — toggle the ribbon fill and lines on or off
Squeeze Momentum
BB Length — Bollinger Band lookback period for squeeze detection (default: 20)
BB Mult — Bollinger Band standard deviation multiplier (default: 2.0)
KC Length — Keltner Channel lookback period (default: 20)
KC Mult — Keltner Channel ATR multiplier (default: 1.5)
Momentum Length — linear regression period for the momentum value calculation (default: 12)
Volume Delta
Volume MA Length — EMA smoothing period for bull and bear volume estimates (default: 14)
OBV Slope Length — lookback bars for OBV slope calculation (default: 10)
VWAP
Use VWAP Filter — when enabled, Layer 4 requires price to be on the correct side of VWAP (default: on)
Show VWAP Bands — toggle ±1σ and ±2σ band plots on or off
Band 1 Mult — first standard deviation band multiplier (default: 1.0)
Band 2 Mult — second standard deviation band multiplier (default: 2.0)
Confluence Gate
Min Layers Required — how many of the 4 layers must agree for a signal to fire. 2 = more signals, 3 = balanced (default), 4 = ultra-selective
Session Filter — toggle the active hours restriction on or off
Active Session — configurable session window string (default: 0700-2000)
ADX Filter
Use ADX Filter — toggle the trend quality gate on or off
ADX Length — lookback period for ADX calculation (default: 14)
ADX Minimum — threshold below which all signals are suppressed (default: 20)
Exit Settings
ATR Length — lookback period for ATR used in all exit calculations (default: 10)
SL ATR Mult — stop loss distance from entry as a multiple of ATR (default: 1.2)
TP1 ATR Mult — first take-profit distance (default: 1.8 — approximately 1.5:1 reward on a full position)
TP2 ATR Mult — full exit target distance (default: 3.5 — approximately 3:1 reward)
Use ATR Trailing Stop — toggle the dynamic trailing stop mechanism on or off
Trail ATR Mult — trailing stop distance from current bar's low or high (default: 1.5)
Show Exit Levels — toggle SL, TP1, TP2, and trail lines on the chart
Display
Show Confluence Score Label — prints the live score (e.g. 3/4) on every signal triangle
Show Dashboard — toggle the entire dashboard panel on or off
Dashboard Position — Top Left / Top Right / Bottom Left / Bottom Right
Colors
Bull / Bull Bright — yellow-green family for all bullish signals, fills, and labels
Bear / Bear Bright — red family for all bearish signals, fills, and labels
Squeeze — orange used for squeeze background tint and trailing stop line
Neutral — gray for inactive states and neutral dashboard rows
Text Light / Dash BG — dashboard typography and background
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔔 Alert Conditions (9 total)
Entry Alerts
Bull Confluence Entry — bull score meets threshold, ADX passes, session active
Bear Confluence Entry — bear score meets threshold, ADX passes, session active
Exit Alerts
Bull TP1 Hit — price reaches the first bull take-profit level
Bull TP2 Hit — price reaches the full bull exit target
Bull Stop Hit — stop loss or trailing stop triggered on a long position
Bear TP1 Hit — price reaches the first bear take-profit level
Bear TP2 Hit — price reaches the full bear exit target
Bear Stop Hit — stop loss or trailing stop triggered on a short position
Special State Alerts
Squeeze Started — Bollinger Bands have compressed inside Keltner Channels. A breakout setup is loading
All alert messages include {{ticker}} and {{interval}} for clean webhook and notification integration.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🎯 Recommended Settings by Instrument & Timeframe
The default configuration is optimized for XAUUSD, major forex pairs, and crypto on M1–M5 :
Min Layers at 3/4 — strong confluence without requiring perfection on every bar
ADX minimum at 20 — filters choppy intraday sessions without being overly restrictive
ATR Trail at 1.5× — gives trades enough room to breathe on fast-moving scalping timeframes
Session 07:00–20:00 — covers London and New York sessions, the highest-volume windows for forex and gold
For other instruments or timeframes, adjust:
Higher timeframes (M15, H1, H4) — increase EMA periods (Fast 13, Slow 34, Signal 89), increase ADX minimum to 25, increase TP2 to 4.5–5.0× ATR
Crypto (BTC, ETH) — increase KC Mult to 2.0–2.5 to accommodate wider volatility, increase SL mult to 1.5–2.0
Indices (NAS100, US30, SPX500) — use defaults with ADX raised to 22–25. Index trends are strong but session timing is critical — tighten session window to 09:30–16:00 for US indices
More signals — lower Min Layers to 2, disable ADX filter, widen session window
Fewer, higher-quality signals — raise Min Layers to 4, raise ADX minimum to 25, enable volume filter with ratio at 1.2×
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
👥 Who This Is For
⚡ Scalpers and intraday momentum traders — the 1m–15m timeframe focus and ATR trailing exit system are built specifically for fast-moving intraday conditions
🥇 Gold (XAUUSD) and forex traders — default settings are tuned and tested on gold and major pairs during London and New York sessions
📊 Crypto and index traders — the four-layer architecture adapts across instruments without manual recalibration
🧠 Systematic traders — the live confluence score provides a quantitative signal quality reading, not just a visual arrow
📈 Traders who want to eliminate overtrading — the confluence gate, ADX filter, session filter, and edge triggering physically prevent low-quality setups from appearing on the chart
🎯 Traders who struggle with exits — the three-layer exit system (fixed SL, scaled TP1, trailing TP2) provides a complete, rules-based exit framework that removes emotion from trade management
📉 Risk-conscious traders — every trade has a defined stop, a defined first target, and a dynamic trailing mechanism. There is no ambiguity about where you exit under any scenario
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📝 Notes
All signals are confirmed on bar close — the indicator is non-repainting by design
The edge-triggered signal logic means each triangle on the chart represents a distinct new confluence event — the same setup does not generate repeated signals during extended runs
The trailing stop line on the chart is a real-time visual — it moves every bar the trade is open and accurately reflects the current stop level at all times
Maximum 500 labels and 500 lines are used — on very low timeframes with extended chart history, the oldest markers may be automatically removed by TradingView's rendering limits
The Squeeze background tint is a leading indicator — it appears before signals fire, giving you time to prepare. The strongest Pulse Scalper signals frequently begin with a squeeze
The VWAP calculation resets at the start of each session. On instruments without a defined session (perpetual crypto), the VWAP anchors to the chart's visible history. For best results on crypto, use a 24-hour session string or disable the VWAP filter and use the other three layers
The Trade Status section on the dashboard tracks position direction from signal to exit within a single chart session — it does not connect to your broker or brokerage account
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠ Disclaimer
This indicator is a technical analysis and visualization tool intended for educational and informational purposes only. It does not constitute financial advice or a recommendation to buy or sell any financial instrument. All signals are generated from historical and real-time price data using mathematical calculations — their accuracy or profitability is not guaranteed. Past performance of any signal type does not guarantee future results. Always conduct your own analysis, use proper risk management, and consult a licensed financial advisor before making any trading decisions. The author accepts no responsibility for any losses incurred from the use of this indicator.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Built for scalpers who need more than a signal — a complete system that scores, filters, enters, trails, and exits with precision on every trade. Indicador
Moving Average MTF**Moving Average MTF (Multi-Timeframe)**
This indicator plots three fully customizable moving averages, each calculated from an independent timeframe of your choice. Instead of being limited to the timeframe of your chart, each MA pulls data directly from its assigned timeframe — giving you a layered view of trend across multiple time horizons simultaneously.
By default the three MAs are set to 15 minutes, 1 hour, and 4 hours, all using a 50-period SMA. This makes the indicator best suited for use on a 5-minute chart, where all three timeframes sit above your chart and give you a clear short, medium, and macro trend stack in a single view.
---
**Settings**
Each of the three MAs has its own independent group of controls:
- **Show MA** — Toggles the MA line on or off without removing it from the settings.
- **Show Label** — Toggles the end-of-line label that appears to the right of the last candle. The label displays the MA type, length, timeframe, and current value.
- **Length** — The number of candles used to calculate the MA, based on its assigned timeframe. Default is 50 for all three.
- **Timeframe** — The timeframe the MA is calculated from, regardless of what timeframe your chart is on. You can type any valid timeframe directly into this field.
- **Type** — The moving average algorithm. Choose from SMA, EMA, WMA, VWMA, RMA, or HMA.
- **Line Style** — Choose between Solid, Stepline, or Circles.
- **Line Thickness** — Controls the width of the line from 1 to 10.
- **Color** — Full color picker to set each MA to any color you prefer.
---
**How to Use**
Keep your chart timeframe at or below the lowest MA timeframe you have set. With the defaults of 15min, 1h, and 4h, running the indicator on a 5-minute chart gives you the most meaningful read. When all three MAs are stacked and sloping in the same direction, trend is aligned across all three timeframes — the highest conviction environment for a trade. When they are tangled or conflicting, the market is in an indecisive state and it is generally best to wait for clarity.
---
**Important Note**
If your chart timeframe is higher than any of the MA timeframes you have set, that MA will still display but the value will not be meaningful. The indicator will not produce errors — it is purely a logical consideration. Always ensure your chart timeframe sits below your lowest MA timeframe for accurate results. Indicador
Indicador
Moving Average XLMoving Average XL is a customizable multi-moving-average overlay that allows traders to plot up to three separate moving averages on the chart at the same time. Each moving average can be independently enabled, adjusted, styled, and color-coded, making it useful for trend direction, dynamic support and resistance, crossover analysis, and multi-timeframe-style trend context.
Each MA group includes the same core settings. “Show MA” turns that moving average on or off. “Length” controls the number of candles used in the calculation, with shorter lengths reacting faster to price and longer lengths smoothing price action more heavily. “Type” lets the user choose between SMA, EMA, WMA, VWMA, RMA, and HMA depending on how responsive or smooth they want the line to be. “Line Style” changes the visual display between solid, stepline, or circles. “Line Thickness” controls the weight of the plotted line, and “Color” lets the user customize each average for easier chart reading.
This indicator is designed for traders who want a clean, flexible moving average tool without unnecessary clutter. Use shorter averages to track near-term momentum, medium averages to define intermediate trend direction, and longer averages to identify major trend bias or high-probability support and resistance areas. Indicador
Indicador
IrishGOD PDH/PDL Zones + Pre-Market H/L + MA RibbonPDH/PDL Zones + Pre-Market H/L + MA Ribbon
A comprehensive overlay indicator for TradingView (Pine Script v5) that combines three institutional-grade tools on a single chart: historical previous-day high/low zones drawn from full candle wicks, intraday pre-market extremes, and a fully configurable multi-timeframe moving average ribbon. Designed for intraday traders who need clean, actionable levels without switching between charts or timeframes.
Pine Script v5
Overlay
Intraday
Multi-Timeframe
Alerts Included
1
Previous Day High / Low Zones
Automatically identifies the highest and lowest candle of each prior session and draws a shaded zone that spans the full wick of that candle — from the wick tip (the session extreme) down to the candle body edge (max or min of open/close). This provides a realistically sized supply or demand zone rather than a single horizontal line, accurately representing the price range where the reversal originated. Zones are stored across up to 50 prior trading days and drawn efficiently on the last bar to avoid unnecessary repainting.
Lookback
Up to 50 previous days retained and displayed simultaneously
Zone geometry
Wick tip → candle body edge; minimum 4-tick thickness for doji candles
Extension
Most recent zone optionally extends to the right edge of the chart
Labels
PDH / PDL price labels on the latest zone; four size options
Color picker
Border width 0–4px
Adjustable opacity
Toggle on/off
2
Pre-Market High / Low
Tracks the highest high and lowest low recorded during the configurable pre-market window (default 4:00–9:30 AM Eastern Time) and draws horizontal lines at those levels the moment the regular session opens. These levels are widely watched by professional traders as the first potential support and resistance areas of the day, and are particularly relevant on gap-up or gap-down open days. All time calculations are anchored to America/New_York to handle daylight saving time correctly.
Session window
Fully configurable start hour, end hour, and end minute (24h ET)
Line style
Solid, dashed, or dotted; line width 1–4px
Extension
Lines optionally extend rightward through the rest of the session
Labels
"PM High" / "PM Low" labels with exact price values
Requires a TradingView subscription that includes extended-hours data. Levels reset each new trading day.
3
Multi-Timeframe MA Ribbon
A ribbon of up to 8 independent moving averages rendered directly on the price chart. Each MA is fully self-contained: it has its own toggle, length, color, and — critically — its own timeframe selector. This allows a single ribbon to simultaneously display a short-term trend on the current chart timeframe alongside higher-timeframe MAs (e.g. a daily 21 EMA or a weekly 50 SMA) without opening additional chart panes. When an alternate timeframe is active, the value label automatically appends a tag for instant visual identification.
MA types available
SMA
EMA
WMA
VWMA
HMA
DEMA
TEMA
RMA
LSMA
Ribbon count
8 MAs; MAs 1–5 enabled by default (lengths 8, 13, 21, 34, 55)
Per-MA timeframe
Each MA resolves on its own timeframe via request.security(); blank = current chart
Fill
Gradient color fill between consecutive MA lines; adjustable opacity
Value labels
Live price labels pinned to the right edge; show tag for HTF MAs
Source
Configurable price source: close, open, high, low, hl2, hlc3, ohlc4, etc.
Line width
Global line width control (1–4px) applied to all active MAs
lookahead=barmerge.lookahead_off is enforced on all request.security() calls to prevent higher-timeframe data leakage into historical bars.
4
Alerts
Five built-in alert conditions, configurable from TradingView's alert dialog:
Price enters the most recent PDH zone (within 0.1%)
Price enters the most recent PDL zone (within 0.1%)
Price enters either PDH or PDL zone
MA1 crosses above MA2 — bullish signal
MA1 crosses below MA2 — bearish signal
5
Technical notes
Compatibility
Intraday charts (1m – 4h). Requires extended-hours data for pre-market feature.
Object limits
max_boxes_count 500 · max_lines_count 500 · max_labels_count 200
Rendering
PDH/PDL boxes drawn only on barstate.islast to eliminate per-tick redraw overhead
DST handling
All session time logic uses America/New_York timezone natively Indicador
Minicharts Multi Market [Herman]Minicharts Multi Market
Minicharts Multi Market is a multi-asset visualization tool designed to display several different markets directly on a single chart using compact embedded mini charts.
Instead of switching between multiple tabs and layouts, this script allows traders to monitor intermarket behavior, relative strength, SMT relationships, and higher timeframe structure from one workspace.
The indicator is intended as a visual decision-support tool only and does not generate buy or sell signals.
Purpose
The main goal of this script is to improve chart workflow and market awareness by allowing users to:
• Monitor multiple correlated assets at the same time
• Compare futures markets such as NQ, ES, YM, RTY, CL, GC and others
• Observe relative strength and weakness across markets
• Identify potential SMT divergences between correlated instruments
• Keep higher timeframe structure visible while executing on lower timeframes
• Reduce the need to constantly switch charts during active trading sessions
This helps traders maintain better context and avoid missing important intermarket information.
How It Works
The script uses request.security() to retrieve OHLC data from multiple user-selected symbols and reconstructs them as compact mini charts displayed on the right side of the main chart.
Each mini chart functions independently and can display:
• Custom symbol
• Custom timeframe
• Optional EMA
• Optional VWAP
• Optional SMT detection
• Optional HTF Fair Value Gaps (FVG / iFVG)
The indicator does not use repainting logic for visualization purposes and is designed for structural reference and contextual analysis.
Main Features
1. Multi-Asset Minicharts
Display up to 6 different assets simultaneously.
Examples:
• NQ
• ES
• YM
• RTY
• CL
• GC
• SI
• Forex pairs
• Indices
• Any TradingView-supported symbol
Each chart can use its own symbol and its own timeframe.
This makes the script useful for:
• Index traders
• Futures traders
• SMT traders
• Intermarket analysis
• Session-based traders
• Higher timeframe structure alignment
2. Automatic SMT Detection
The script includes optional SMT (Smart Money Technique) divergence visualization.
It automatically detects correlated comparison assets:
Examples:
• NQ ↔ ES
• ES ↔ NQ
• YM ↔ ES
• RTY ↔ ES
• GC ↔ SI
• CL ↔ RB
When pivot highs or lows diverge between assets, the script highlights these areas visually.
This feature is designed to assist traders who use SMT as confirmation, not as a standalone entry signal.
3. EMA Overlay
Each mini chart can optionally display EMA.
Settings include:
• Enable / disable EMA globally
• Enable / disable EMA per mini chart
• Custom EMA period
• Custom EMA color
This helps users quickly identify trend alignment across markets.
4. VWAP Overlay
Each mini chart can optionally display VWAP.
Settings include:
• Enable / disable VWAP globally
• Enable / disable VWAP per mini chart
• Custom VWAP color
This allows users to monitor mean reversion and institutional reference pricing across multiple instruments.
5. HTF Fair Value Gaps (FVG)
Optional HTF Fair Value Gap visualization is included.
The script detects:
• Bullish FVG
• Bearish FVG
• Inverted FVG (iFVG)
Users can choose:
• Extended mode
• Next Bar Only mode
This helps provide additional structural context on higher timeframe inefficiencies.
Settings Overview
Minicharts Assets Setup
For each mini chart:
• Enable / disable chart
• Select symbol
• Select timeframe
• Enable / disable SMT
• Enable / disable EMA
• Enable / disable VWAP
Each of the 6 mini charts can be customized independently.
EMA Configuration
• Show EMA
• EMA period
• EMA color
VWAP Configuration
• Show VWAP
• VWAP color
HTF FVG Configuration
• Show FVG
• Extension mode
• Bullish FVG color
• Bearish FVG color
• Inverted FVG color
Style & Layout
• Pivot lookback for SMT
• SMT colors
• Candle colors
• Number of bars shown
• Bar spacing
• Background frames
• Right offset
• Column spacing
• Chart height
• Row spacing
• Asset / timeframe labels
These controls allow users to fully adapt the layout to their chart style.
Important Notes
This script is designed for visualization purposes only
It does not generate trading signals, alerts, or recommendations
All calculations are based on historical price data
The tool is intended to support chart analysis, not replace independent decision-making Indicador
Indicador
Follow The LineFollow The Line (FTL) is a trend-following indicator that plots a user-defined moving average on the chart and generates visual buy and sell signals based on price interaction with that line. The indicator allows the user to choose the moving average length, source, and type, including SMA, EMA, WMA, VWMA, RMA, and HMA, making it adaptable to different trading styles and timeframes. The plotted line dynamically changes color depending on whether the selected price source is above or below the moving average, providing immediate visual feedback on trend direction.
Buy and sell signals are generated using crossover logic. A buy signal occurs when the selected price source crosses above the moving average, and a sell signal occurs when it crosses below. These signals are displayed directly on the chart as labeled markers, making it easy to identify potential entry points without additional indicators. The script includes an option to enable or disable these labels, as well as full customization of their colors.
To prevent excessive chart clutter, the indicator uses an internal label management system that stores buy and sell labels in separate arrays and limits how many are displayed at any given time. By default, it keeps only the most recent ten buy signals and ten sell signals, automatically removing older labels as new ones appear. This keeps the chart clean while still preserving recent signal history for reference.
Overall, Follow The Line is a clean and flexible moving average crossover tool that emphasizes simplicity and visual clarity. It works best in trending market conditions and can serve either as a standalone signal generator or as a foundation for more advanced strategies by layering in additional filters or confirmations. Indicador
Trinity FlowOverview
This strategy is based on the trading method I used when I first entered the world of investing at age 20. While the original entry conditions and exit rules were quite rough, I've revived this approach with a sense of nostalgia, refining it into a modern form after years of experience.
Strategy Features
Trend Filter: Trend determination using three EMAs (8, 14, 50)
EMA alignment 8 > 14 > 50: Long condition (EMA line: White)
EMA alignment 50 > 14 > 8: Short condition (EMA line: Red)
Other alignments: Range/neutral (EMA line: Gray)
Entry Timing: Stochastic RSI (3, 3, 14, 14) crossover
Long entry on the bar following a confirmed golden cross
Short entry on the bar following a confirmed death cross
Risk Management: ATR (14) based fixed ratios
Stop Loss: ATR × 3
Take Profit: ATR × 2
Visual Design
White EMA line: Long opportunity zone
Red EMA line: Short opportunity zone
Gray EMA line: No clear trading opportunity
Light white box: Profit zone
Light red box: Loss zone
Parameters
All parameters (EMA periods, Stoch RSI settings, ATR period, SL/TP multipliers) are fully adjustable in the settings.
Disclaimer
Frequent false signals may occur in ranging markets
Works best in strong trending markets
Past performance does not guarantee future results
概要
このストラテジーは、私が20歳の頃、初めて投資の世界に入った時に使っていた手法を基にしています。当時は粗削りなエントリー条件と決済ルールでしたが、長年の経験を経て、懐かしさを感じながら現代的な形に復活させました。
手法の特徴
トレンドフィルター：3本のEMA（8, 14, 50）の並び順でトレンドを判定
EMAが8 > 14 > 50の順：ロング条件（EMAライン：白）
EMAが50 > 14 > 8の順：ショート条件（EMAライン：赤）
それ以外：レンジ状態（EMAライン：灰色）
エントリータイミング：Stochastic RSI（3, 3, 14, 14）のクロス
ゴールデンクロス確定後の次足でロングエントリー
デッドクロス確定後の次足でショートエントリー
リスク管理：ATR（14）ベースの固定比率
損切：ATR × 3倍
利確：ATR × 2倍
ビジュアルデザイン
白いEMAライン：ロング狙える状態
赤いEMAライン：ショート狙える状態
灰色のEMAライン：エントリーチャンスなし
薄い白ボックス：利益ゾーン
薄い赤ボックス：損失ゾーン
パラメータ
すべてのパラメータ（EMA期間、Stoch RSI設定、ATR期間、損切・利確倍率）は設定から調整可能です。
注意事項
レンジ相場では頻繁にダマシが発生する可能性があります
強いトレンド相場で最も効果を発揮します
バックテストの結果は過去のパフォーマンスであり、将来の結果を保証するものではありません Estratégia
Prismatic Trend Matrix [JOAT]Prismatic Trend Matrix
Introduction
The Prismatic Trend Matrix is an advanced open-source multi-dimensional trend analysis system that combines Hull Moving Average, SuperTrend, ADX strength filtering, and moving average confluence into a unified trend detection engine. This indicator analyzes trend across multiple dimensions simultaneously, creating a prismatic view of market direction with gradient visualization that reveals trend strength and conviction.
Unlike single-indicator trend systems, the Prismatic Trend Matrix provides multi-layered trend intelligence through Hull MA smoothing, SuperTrend band analysis, ADX strength measurement, and EMA/SMA alignment detection. The indicator is designed for traders who understand that strong trends require confirmation across multiple analytical dimensions.
Why This Indicator Exists
This indicator addresses the need for comprehensive trend analysis that goes beyond simple moving averages. By combining four distinct trend methodologies with gradient visualization, it reveals:
Hull Moving Average: Weighted moving average with reduced lag for responsive trend detection
SuperTrend Component: ATR-based bands that identify trend direction and support/resistance
ADX Strength Filter: Measures trend strength to separate strong trends from weak/choppy conditions
Moving Average Matrix: Three EMAs and two SMAs create alignment-based trend confirmation
Trend Classification: Five-state system (Strong Bull, Weak Bull, Sideways, Weak Bear, Strong Bear)
Counter-Trend Detection: Identifies potential reversals when price moves against established trend
Prismatic Gradient: Visual fill between Hull MA and SuperTrend shows trend intensity
Core Components Explained
1. Hull Moving Average (HMA)
The Hull MA uses weighted moving averages to create a smooth trend line with minimal lag:
The calculation involves three steps:
Step 1: Calculate WMA of half-length period
Step 2: Calculate WMA of full-length period
Step 3: Calculate WMA of the difference using square root of length
The result is a moving average that responds quickly to price changes while maintaining smoothness. The indicator applies additional EMA smoothing (default 3 periods) to reduce noise.
2. SuperTrend Calculation
SuperTrend uses ATR-based bands to identify trend direction:
Source: Average of high and low (HL2)
Upper Band: Source + (ATR × Factor)
Lower Band: Source - (ATR × Factor)
Direction: Bullish when close > upper band, bearish when close < lower band
Three modes control band adjustment:
Strict Mode: Bands adjust only when price crosses or previous band is breached
Quick Mode: Bands adjust when price crosses previous band
Quicker Mode: Bands adjust immediately with price
SuperTrend provides dynamic support/resistance levels that adapt to volatility.
3. ADX Strength Measurement
The Average Directional Index measures trend strength:
DI+ (Directional Indicator Plus): Measures upward directional movement
DI- (Directional Indicator Minus): Measures downward directional movement
ADX: Smoothed average of the difference between DI+ and DI-, normalized
Threshold: ADX above threshold (default 25) indicates strong trend
Rising ADX: Indicates strengthening trend momentum
ADX filters out weak trends and choppy conditions, ensuring signals occur only during strong directional movement.
4. Moving Average Matrix
Five moving averages create a trend alignment system:
Fast EMA (9): Short-term trend direction
Medium EMA (21): Intermediate trend direction
Slow EMA (50): Primary trend direction
Fast SMA (50): Smoothed primary trend
Slow SMA (200): Long-term institutional trend
Alignment is measured by comparing the order of these averages:
Bullish Alignment: EMA9 > EMA21 > EMA50 > SMA50 (all in ascending order)
Bearish Alignment: EMA9 < EMA21 < EMA50 < SMA50 (all in descending order)
Mixed Alignment: Averages not in order (choppy or transitional conditions)
Perfect alignment indicates strong institutional conviction in the trend direction.
5. Composite Trend Classification [/b>
The indicator combines all components into a five-state trend classification:
Strong Bull (State 2): Hull rising + SuperTrend bullish + MA alignment bullish + ADX strong
Weak Bull (State 1): Hull rising + (SuperTrend bullish OR MA alignment bullish)
Sideways (State 0): Mixed signals or weak trend conditions
Weak Bear (State -1): Hull falling + (SuperTrend bearish OR MA alignment bearish)
Strong Bear (State -2): Hull falling + SuperTrend bearish + MA alignment bearish + ADX strong
This classification provides clear trend assessment at a glance.
6. Counter-Trend Detection [/b>
The indicator identifies potential reversals when price moves against established trend:
Counter-Trend Bull: Trend state neutral/bearish + close > open + price rising + DI+ > DI- + close > Hull + ADX > 20
Counter-Trend Bear: Trend state neutral/bullish + close < open + price falling + DI- > DI+ + close < Hull + ADX > 20
Counter-trend signals include anti-overlap logic to prevent signal clustering and ensure clean placement.
7. Prismatic Gradient Visualization
The indicator creates a gradient fill between Hull MA and SuperTrend:
Gradient Layers: Multiple intermediate values calculated between Hull and SuperTrend (default 15 layers)
Color Intensity: Transparency increases from Hull (solid) to SuperTrend (transparent)
Dynamic Coloring: Gradient color matches trend state (green = bullish, red = bearish, cyan = sideways)
Visual Effect: Creates a glowing prismatic effect that emphasizes trend strength
The gradient provides intuitive visual feedback on trend intensity and direction.
8. Platform Levels
Platform levels are horizontal lines at the current Hull MA value:
Extension: Lines extend forward and backward from current bar (default 7 bars each direction)
Color Coding: Platform color matches current trend state
Purpose: Provides visual reference for potential support/resistance at Hull MA level
Platforms help identify key levels where price may find support or resistance.
Visual Elements
Hull Trend Line: Thick line (3px) with regime-based coloring showing primary trend
SuperTrend Line: Medium line (2px) with step-line style showing dynamic support/resistance
EMA Matrix: Three thin lines showing fast, medium, and slow EMAs with transparency
Prismatic Gradient: Multi-layer fill between Hull and SuperTrend creating glow effect
Platform Levels: Horizontal lines at Hull MA value extending forward/backward
Counter-Trend Signals: Triangles marking potential reversal points
Background Coloring: Subtle background tint for strong bull/bear states
Information Dashboard: Displays trend state, Hull direction, ADX strength, momentum, alignment, SuperTrend, DI balance, price vs Hull, gradient zone, counter-trend status, and signal
How to Use This Indicator
Step 1: Check Trend State
Monitor the dashboard for current trend state (Strong Bull, Weak Bull, Sideways, Weak Bear, Strong Bear). Trade in the direction of strong states.
Step 2: Verify ADX Strength
Ensure ADX is above threshold (default 25) for strong trends. Low ADX indicates choppy conditions - avoid trend-following strategies.
Step 3: Confirm MA Alignment
Check if moving averages are aligned (Bullish/Bearish/Mixed). Perfect alignment confirms institutional conviction.
Step 4: Monitor Hull Direction
Hull rising = bullish bias, Hull falling = bearish bias. Hull provides the primary trend direction signal.
Step 5: Use SuperTrend for Support/Resistance
SuperTrend line acts as dynamic support in uptrends and resistance in downtrends. Breaks of SuperTrend warn of trend changes.
Step 6: Watch for Counter-Trend Signals
Counter-trend signals at extreme levels may indicate reversals. Use these cautiously and confirm with other factors.
Step 7: Assess Gradient Zone
Price in upper gradient zone (near Hull) = strong trend, price in lower zone (near SuperTrend) = weak trend or potential reversal.
Best Practices
Trade only in Strong Bull or Strong Bear states for highest probability
Avoid trading in Sideways state - wait for clear trend establishment
Use ADX as a filter - only trade when ADX > 25 for strong trends
Confirm trend with MA alignment before entering positions
Use SuperTrend as trailing stop level in trending markets
Counter-trend signals work best at extreme levels with divergence
Monitor gradient zone - price near SuperTrend may indicate trend exhaustion
Combine with higher timeframe trend for additional confirmation
Input Parameters
Hull Trend Engine:
Hull Length: Period for Hull MA calculation (default: 20)
Hull Smoothing: Additional EMA smoothing (default: 3)
SuperTrend Layer:
ATR Period: Period for ATR calculation (default: 10)
ATR Factor: Multiplier for band width (default: 3.0)
Mode: Strict, Quick, or Quicker (default: Quick)
Trend Strength:
ADX Length: Period for ADX calculation (default: 14)
ADX Smoothing: Smoothing period for ADX (default: 14)
Strength Threshold: Minimum ADX for strong trend (default: 25)
MA Matrix:
Fast EMA: Short-term EMA (default: 9)
Medium EMA: Intermediate EMA (default: 21)
Slow EMA: Primary EMA (default: 50)
Fast SMA: Smoothed primary (default: 50)
Slow SMA: Long-term institutional (default: 200)
Visual Configuration:
Bullish/Bearish Trend Colors: Customizable colors for trend states
Sideways/Weak Trend Colors: Colors for neutral and weak states
Gradient Layers: Number of gradient fills (default: 15)
Show Platforms: Toggle platform level display (default: enabled)
Platform Extension: Bars to extend platforms (default: 7)
Originality Statement
This indicator is original in its multi-dimensional trend approach. While individual components (Hull MA, SuperTrend, ADX, EMAs) are established concepts, this indicator is justified because:
It combines four distinct trend methodologies into a unified classification system
The five-state trend classification provides clear trend assessment
Prismatic gradient visualization creates intuitive trend intensity display
Counter-trend detection with anti-overlap logic identifies potential reversals
MA alignment analysis measures institutional conviction
Integration of Hull MA smoothness with SuperTrend adaptability creates balanced trend detection
The comprehensive dashboard presents all trend dimensions simultaneously
Disclaimer
This indicator is provided for educational and informational purposes only. It is not financial advice. Trading involves substantial risk of loss. Trend analysis does not guarantee profitable trades. Past trends do not guarantee future trends. Always use proper risk management and never risk more than you can afford to lose.
-Made with passion by officialjackofalltrades Indicador
Rolling Segment [LuxAlgo]The Rolling Segment indicator provides a dynamic, trend-following reference line that adapts its slope and direction based on price volatility and distance from the market.
🔶 USAGE
The indicator is designed to filter out minor price fluctuations while remaining responsive to significant trend shifts. It appears as a continuous segmented line on the chart, changing color based on the current trend (Green for bullish, Red for bearish).

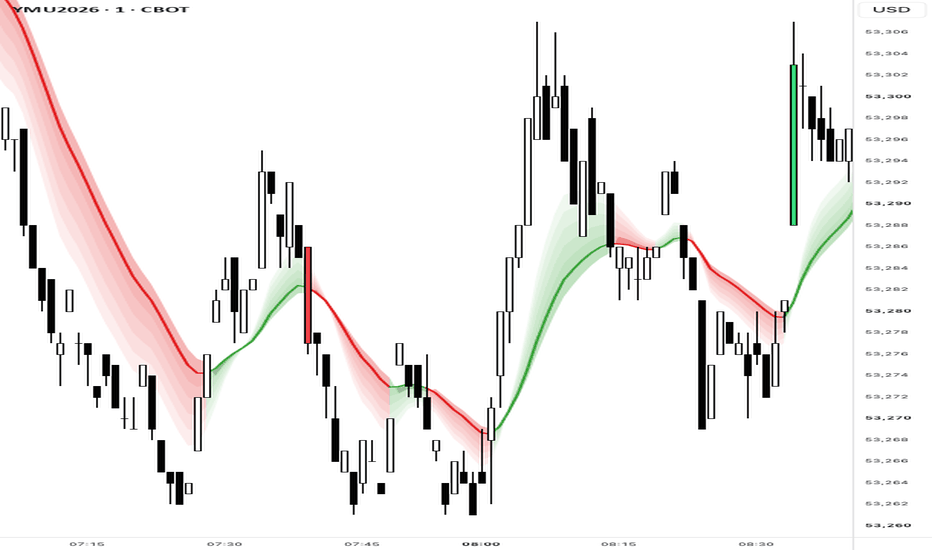

A gradient fill is applied between the price and the segment to visualize the "stretch" or deviation of the current price action from the trend line. This visual aid helps traders identify when price is moving in lockstep with the trend versus when it is overextending.
🔹 Reversal Signals
The indicator identifies trend reversals when the distance between the price and the segment exceeds a user-defined ATR-based threshold. These reversals are marked on the chart with triangle labels:
A bullish triangle (▲) appears below the segment when a new uptrend begins. A bearish triangle (▼) appears above the segment when a new downtrend begins.
🔹 Speed Modes
The segment operates in two speed modes: "Fast" and "Slow." When price moves significantly away from the segment (crossing the Fast Threshold), the indicator switches to a faster slope to catch up with the momentum. When price is closer to the segment, it maintains a slower, more stable slope to avoid premature trend changes during consolidation.
🔶 MARKET INTERPRETATION
The Rolling Segment acts as a measure of trend health. Because the slope is derived from the Average True Range (ATR), the "speed" of the line is normalized to the asset's current volatility.
Trend Momentum: When the price stays consistently above a green segment (or below a red one) without triggering the "Fast" mode, it indicates a stable, sustainable trend. Price Exhaustion: A sudden jump into "Fast" mode often highlights a surge in momentum. If the price continues to stretch significantly beyond the segment even in fast mode, it may signal an overextended move prone to mean reversion. Consolidation: Horizontal or shallow segments indicate a period where the market is lacking a clear directional driver relative to its recent volatility.
🔶 DETAILS
The core of the script relies on a state-machine logic that governs a unique slope-freezing mechanism. Unlike traditional moving averages that recalculate every bar based on shifting data, this indicator calculates a linear slope and "freezes" it until a specific state change occurs.
The state is defined by the combination of Trend Direction and Speed Mode . The ATR value used to calculate the slope is only updated when:
A trend reversal is detected (Price crosses the Reverse Threshold). The distance between price and the segment crosses the "Fast Threshold," triggering a shift in speed mode. The initial calculation begins at the start of the data series.
By freezing the slope, the indicator produces perfectly linear segments. This mathematical intuition ensures that the reference line moves at a constant "volatility-adjusted rate" per bar, providing a cleaner visual representation of trend momentum and making it easier to spot price exhaustion when the market deviates too far from this constant rate.
🔶 SETTINGS
🔹 Slopes
Fast Slope Length: The period used to determine the slope speed when the price is trending strongly. Lower values result in a steeper, more aggressive slope. Slow Slope Length: The period used to determine the slope speed during standard market conditions. Higher values create a flatter, more trailing segment.
🔹 ATR Settings
ATR Length: The lookback period for the Average True Range calculation, which scales the slope and thresholds to current market volatility.
🔹 Thresholds
Fast Slope Threshold (ATR Multiplier): The distance (in ATR units) the price must reach from the segment to trigger the "Fast" slope mode. Reverse Threshold (ATR Multiplier): The distance (in ATR units) the price must cross against the current trend to trigger a reversal and change the segment direction. Indicador
[ A L P H A X ] Vision - Smart Entry/Exit SignalsAlphaX Vision — Fusion Trend Engine, Smart Entry/Exit Signals, Multi-Confluence Confidence Scoring & Choppy Market Detection
AlphaX Vision is a professional-grade trend following and signal system built on a proprietary Fusion Moving Average engine that blends five different moving average types into a single adaptive trend baseline. It delivers three distinct signal layers — Trend Change labels, Re-Entry triangles, and Exit markers — each governed by a multi-factor confidence scoring system and institutional-grade filters. Designed for intraday traders on fast-moving instruments like XAUUSD, indices, and forex majors.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📸 Visual Overview
Full chart view showing Fusion Cloud, trend labels, re-entry triangles, and exit markers on XAUUSD 1-minute
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔬 The Fusion Engine — How It Works
At the core of AlphaX Vision is the Fusion Moving Average — a proprietary composite baseline calculated by averaging five independent moving average types on every bar:
EMA — Exponential Moving Average for fast responsiveness
SMA — Simple Moving Average for stability and noise reduction
WMA — Weighted Moving Average for recent-price emphasis
ALMA — Arnaud Legoux Moving Average for Gaussian-smoothed precision
VWAP — Volume Weighted Average Price for institutional volume anchoring
The raw Fusion value is then split into two smoothed layers:
Fusion Slow — the primary trend baseline (heavier smoothing)
Fusion Fast — the responsive layer that reacts to momentum shifts first
When price is above Fusion Slow and the slope is rising → the trend is bullish (yellow-green theme)
When price is below Fusion Slow and the slope is falling → the trend is bearish (red theme)
When neither condition is met → the market is neutral (gray — no signals fire)
The space between Fusion Fast and Fusion Slow forms the Fusion Cloud — a gradient-shaded area that visually represents trend strength and direction at a glance.
Fusion Cloud expanding during a strong trend — wider cloud = stronger momentum
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📊 Three Signal Layers
AlphaX Vision produces three distinct types of signals, each with a specific role in the trade lifecycle:
1 ─ Trend Change Labels ( B U L L / B E A R )
Compact trend change labels marking the start of a new bullish or bearish phase
These are the primary directional signals . A " B U L L " label appears below the bar when the Fusion system detects a confirmed shift from bearish or neutral to bullish. A " B E A R " label appears above the bar for the opposite shift.
How the trend change is detected:
Price crosses above Fusion Slow while the Fusion Slow slope turns upward → Bullish
Price crosses below Fusion Slow while the Fusion Slow slope turns downward → Bearish
A cooldown timer prevents repeated labels during choppy transitions — configurable via Trend Label Cooldown
Once a trend label fires, it sets the directional context for all subsequent signals. During a BULL trend, only long entries and long exits are generated. During a BEAR trend, only short entries and short exits are generated. This eliminates counter-trend noise entirely.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
2 ─ Re-Entry Triangles (▲ / ▼)
Small re-entry triangles appearing after the initial trend label — opportunities to add or re-enter in the direction of the trend
After a trend is established by the Fusion label, the AlphaX Pro engine monitors for high-confidence re-entry opportunities within that trend. These appear as small triangles:
▲ Yellow-green triangle below bar — Re-entry long signal during a BULL trend
▼ Red triangle above bar — Re-entry short signal during a BEAR trend
Re-entry signals are generated by six independent trigger types, all running simultaneously:
Divergence Trigger — WPR divergence against price (price makes new low but WPR makes higher low, or vice versa)
Extreme Snap — Fast WPR recovers from deeply oversold/overbought territory while higher timeframe WPR confirms trend support
Exhaustion Recovery — Price shows exhaustion at a level while the broader trend remains intact
Trend Continuation — Fast WPR crosses back from a pullback zone while slow and turtle WPR confirm a strong ongoing trend
Pullback Entry — A moderate pullback within an established trend with sufficient velocity to confirm the bounce
Triple Alignment — All three WPR timeframes (fast, slow, turtle) reach extreme levels simultaneously and begin recovering together
Each trigger feeds into the Confidence Scoring System (explained below). Only signals that meet your minimum confidence threshold are displayed — weak or ambiguous setups are automatically filtered out.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
3 ─ Exit Markers (✕)
Gray X marks indicating where the Pro engine detects momentum exhaustion against the current trend — time to consider taking profit or tightening stops
Exit signals appear as small gray ✕ marks and fire only after at least one re-entry signal has occurred in the current trend. This prevents premature exit markers from appearing before you have even entered.
During a BULL trend — a sell-side signal from the Pro engine triggers an exit ✕ above the bar
During a BEAR trend — a buy-side signal from the Pro engine triggers an exit ✕ below the bar
Exit markers indicate that counter-trend momentum is building . They do not necessarily mean the trend is over — but they warn that the current move may be losing steam. Use them to:
Take partial or full profit
Tighten your stop loss
Pause new entries until the next re-entry triangle confirms continuation
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🧠 Multi-Confluence Confidence Scoring
Every re-entry and exit signal is scored by a real-time confidence engine that evaluates multiple independent factors and produces a score from 0 to 100. Only signals meeting your configured Min Pro Confidence % threshold are displayed.
The scoring factors include:
Trend Alignment (up to 25 points)
Turtle WPR (200-period) position — measures the macro trend direction
Higher scores when the long-term trend strongly supports the signal direction
Oversold/Overbought Depth (up to 20 points)
How deeply the Fast WPR penetrated into extreme territory before recovering
Deeper penetration = higher score = stronger spring-loaded reversal potential
Signal Type Quality (up to 20 points)
Triple Alignment and Trend Continuation score highest (18–20 points)
Divergence scores 17 points
Extreme Snap scores 14 points
Pullback scores 8 points
Multiple simultaneous triggers add a stacking bonus — 2 triggers = +8 points, 3+ triggers = +15 points
Velocity Quality (up to 15 points)
The speed at which Fast WPR is moving — "IDEAL" velocity scores 15, "STRONG" scores 10, "EXTREME" (too fast, likely to reverse) scores only 3
Velocity thresholds are session-adaptive — adjusted automatically based on whether the current session is London/NY overlap (highest volatility) or Asian session (lowest volatility)
Session Quality (up to 10 points)
London/NY overlap = 10 points (best liquidity and follow-through)
London session = 8.5 points
NY afternoon = 6 points
Asian session = 3 points (signals during Asia receive a penalty)
EMA Alignment (up to 5 points)
Price position relative to 200 EMA and 50/200 EMA cross — confirms structural trend
Penalty Deductions
Extreme velocity (likely spike/wick) — up to -10 points
RSI already at opposite extreme — up to -8 points
Asian session or NY close timing — up to -10 points
Low volume — -5 points
The default minimum confidence is set to 35% — optimized for XAUUSD 1-minute to filter noise while still capturing valid setups. Increase to 45–55% for even cleaner signals on higher timeframes, or reduce to 20–25% for more aggressive scalping.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🛡 Trend Alignment Gate
An additional layer of protection called the Trend Alignment Gate prevents counter-trend signals from firing during strong established trends.
If Turtle WPR and Slow WPR both confirm a strong downtrend → buy signals are blocked unless the Fast WPR shows a confirmed recovery move from extreme oversold (recovery must exceed a minimum move threshold within a configurable lookback window)
If both confirm a strong uptrend → sell signals are blocked unless Fast WPR shows confirmed recovery from overbought
Strict Mode tightens the gate thresholds further for maximum noise reduction
This gate is enabled by default and is one of the key reasons AlphaX Vision produces significantly fewer false signals than typical oscillator-based systems.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠ Identifying Choppy / Ranging Markets — When NOT to Trade
Choppy market condition — EMAs converging, Fusion Cloud collapsed, no clear trend labels. This is when you step aside.
Knowing when to stay out is just as important as knowing when to enter. AlphaX Vision gives you clear visual cues that the market is in a choppy, range-bound state:
How to identify choppy conditions:
Fusion Cloud disappears or becomes paper-thin — when Fusion Fast and Fusion Slow are nearly overlapping, the cloud collapses. No cloud = no trend = no edge.
EMAs converge and flatten — when the Fast EMA (yellow-green dots), Medium EMA (gray line), and Slow EMA (dark gray line) all cluster together and move sideways, the market has no directional bias.
Frequent color switches — if the Fusion system is rapidly alternating between bullish and bearish with labels appearing in quick succession, the trend cooldown filter is doing its job blocking most of them, but the underlying message is clear: no clean trend.
No re-entry triangles appearing — even after a trend label fires, if the Pro engine cannot find a single re-entry opportunity that meets the confidence threshold, the "trend" is likely a false start.
Cloud color is gray (neutral) — when neither bullish nor bearish conditions are met, the Fusion lines turn gray. This is the indicator explicitly telling you: this is a no-trade zone.
What to do during choppy markets:
Do not force entries — wait for the cloud to expand and a clean trend label to form
Look for the EMAs to fan out and separate — this confirms that a new directional move is developing
Wait for the first re-entry triangle after a trend label before committing capital — the triangle confirms the trend has real momentum behind it
Consider switching to a higher timeframe temporarily to find structure — if the 1-minute is chopping, the 5-minute or 15-minute may show a clear trend that the 1-minute will eventually follow
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📐 EMA System
Three Exponential Moving Averages are plotted as structural context:
Fast EMA (21) — yellow-green cross marks — the immediate momentum reference. When price holds above the Fast EMA, intrabar momentum favors longs.
Medium EMA (55) — gray line — the intermediate trend filter. Slope direction confirms trend momentum.
Slow EMA (200) — dark gray line, thicker — the structural backbone. The 200 EMA is used by the confidence scoring system and acts as the macro trend divider.
EMA Fan Analysis:
When all three EMAs are fanning outward in order (Fast > Medium > Slow for bullish, reverse for bearish) — the trend is healthy and re-entry signals carry higher confidence
When EMAs are converging — trend is weakening, expect chop or reversal
When EMAs are tangled and flat — range-bound market, stay out
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🚀 How to Trade with AlphaX Vision — Step by Step
Step 1 — Assess Market Condition
Check the Fusion Cloud: Is it expanded and colored, or collapsed and gray?
Check the EMAs: Are they fanned out or tangled?
If choppy → do not trade. Wait for structure.
Step 2 — Wait for a Trend Label
A " B U L L " or " B E A R " label sets your directional bias
Do not enter on the label itself — it confirms the trend, but the optimal entry comes next
SCREENSHOT_7_TRADE_FLOW
Complete trade flow: Trend label → Re-entry triangle → Price move → Exit marker
Step 3 — Enter on Re-Entry Triangle
The first ▲ or ▼ triangle after a trend label is your primary entry signal
This is a confirmed, confidence-scored setup aligned with the macro trend
Place your stop loss beyond the recent swing high/low or below/above the Fusion Slow line
Step 4 — Manage with Subsequent Triangles
Additional re-entry triangles during the same trend are opportunities to add to your position or re-enter after a partial take-profit
Each triangle has passed the same confidence filters as the first
Step 5 — Exit on ✕ Mark
When a gray ✕ appears, the Pro engine has detected counter-trend momentum
Take partial or full profit
If the trend is still active (no opposing trend label), wait for the next re-entry triangle to confirm continuation before re-entering
Step 6 — Trend Ends
When an opposing trend label appears (e.g., " B E A R " after you were in a BULL trend), the trend has reversed
Close any remaining position from the prior trend
The new label resets the cycle — wait for re-entry triangles in the new direction
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚡ Key Features
🔬 Proprietary Fusion MA engine blending EMA + SMA + WMA + ALMA + VWAP into one adaptive baseline
☁ Gradient trend cloud with 5-layer depth shading — instant visual trend strength
🏷 Clean, compact trend labels with spaced lettering — professional and non-intrusive
▲▼ Confidence-scored re-entry triangles — only high-quality setups pass the filter
✕ Smart exit markers — fire only after entry, detect counter-trend momentum buildup
🧠 Multi-factor confidence scoring — trend, depth, velocity, session, volume, EMA alignment, signal stacking
⏱ Session-adaptive velocity thresholds — automatically adjusts for London, NY, Asia, and overlap sessions
🛡 Trend Alignment Gate with Strict Mode — blocks counter-trend noise during strong moves
📐 Three EMAs (21 / 55 / 200) for structural context and fan analysis
🎨 Cohesive dual-tone color theme — yellow-green for bullish, red for bearish, gray for neutral/exits
🔔 6 alert conditions — trend changes, entries, and exits with clean message formatting
⚙ Fully configurable — all periods, thresholds, colors, and filters are adjustable from the settings panel
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚙ Settings Reference
Fusion System
Fusion MA Length — base period for all five moving averages (default: 40)
Fusion Slow Sensitivity — smoothing period for the slow trend line (default: 12)
Fusion Fast Sensitivity — smoothing period for the fast momentum line (default: 5)
Show Trend Cloud — toggle the gradient cloud fill between Fusion Fast and Fusion Slow
EMA Settings
Fast / Medium / Slow EMA — independently toggle visibility and set periods
Defaults optimized for XAUUSD 1-minute: 21 / 55 / 200
AlphaX Pro Settings
Fast WPR Period (default: 11) — the primary oscillator for signal generation
Slow WPR Period (default: 48) — intermediate trend confirmation
Turtle WPR Period (default: 180) — macro trend direction
Oversold / Overbought Levels — thresholds for WPR cross triggers (default: -90 / -10)
Trend Detection Period — lookback for slope calculation (default: 25)
Min Pro Confidence % — minimum score a signal must achieve to be displayed (default: 35%)
Trend Alignment Gate — enable/disable counter-trend blocking
Strict Mode — tighten gate thresholds for maximum noise reduction
Recovery Requirements — minimum WPR recovery move and lookback for counter-trend signal validation
Trend Filters
Trend Label Cooldown — minimum bars between consecutive trend labels (default: 25)
Theme Colors
Bull Primary / Bright / Dim — the yellow-green family for all bullish elements
Bear Primary / Bright / Dim — the red family for all bearish elements
Neutral color — gray for exits, inactive states, and choppy conditions
Individual EMA colors — Fast (yellow-green), Medium (gray), Slow (dark gray)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔔 Alert Conditions
Fusion → Bull Trend — fires when a new BULL trend label appears
Fusion → Bear Trend — fires when a new BEAR trend label appears
Re-Entry Long — fires on each bullish re-entry triangle
Re-Entry Short — fires on each bearish re-entry triangle
Exit Long — fires when a long exit ✕ appears
Exit Short — fires when a short exit ✕ appears
All alert messages include {{ticker}} and {{interval}} placeholders for clean webhook integration.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🎯 Default Settings — Optimized For
The default configuration is specifically tuned for XAUUSD (Gold) on the 1-minute timeframe :
Confidence threshold at 35% filters out low-quality signals while keeping valid scalping setups
Strict Trend Gate enabled to block counter-trend noise during strong gold moves
Cooldown at 25 bars prevents label spam during volatile transitions
WPR periods (11 / 48 / 180) calibrated for gold's intraday volatility profile
Session-adaptive velocity ensures signals respect the different volatility regimes across Asia, London, and NY
For other instruments or timeframes, adjust:
Higher timeframes (5m, 15m) — increase Fusion Length to 50–60, increase confidence to 40–50%
Forex majors — reduce Fusion Length to 30–35, keep confidence at 30–35%
Indices (NAS100, US30) — use defaults or increase Turtle WPR to 200 for broader trend context
Less noise — increase Min Confidence %, enable Strict Mode, increase Cooldown
More signals — decrease Min Confidence %, disable Strict Mode, decrease Cooldown
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
👥 Who This Is For
🥇 Gold (XAUUSD) scalpers and intraday traders — built and tuned specifically for gold's volatility and session structure
📉 Forex traders — works on all major and minor pairs with minor setting adjustments
📊 Index traders — applicable to US30, NAS100, SPX500, DAX, and others
🧠 Systematic traders — the confidence scoring system provides a quantitative framework, not just visual signals
📈 Traders who value clean charts — no indicator soup, no overlapping signals, no clutter. One cohesive system with a consistent color theme
⚠ Traders who struggle with overtrading — the choppy market detection and confidence filters physically prevent low-quality signals from appearing
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📝 Notes
Session-adaptive features use UTC/GMT time — the indicator automatically detects whether the current bar falls within Asia, London, NY overlap, NY afternoon, or NY close windows
Designed primarily for intraday timeframes — M1 through H1. On daily or weekly charts the session-adaptive features are less meaningful but the Fusion trend system still functions
The Fusion engine uses ta.vwap which resets on each new session — this is by design, as it anchors the Fusion baseline to institutional volume flow within the current session
All calculations are non-repainting — signals are confirmed on bar close
Maximum 500 labels and 500 bars lookback are used — on very low timeframes with extended chart history, oldest labels may be automatically removed by TradingView's rendering limits
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠ Disclaimer
This indicator is a technical analysis and visualization tool intended for educational and informational purposes only. It does not constitute financial advice or a recommendation to buy or sell any financial instrument. All signals are generated from historical and real-time price data using mathematical calculations — their accuracy or profitability is not guaranteed. Past performance of any signal type does not guarantee future results. Always conduct your own analysis, use proper risk management, and consult a licensed financial advisor before making any trading decisions. The author accepts no responsibility for any losses incurred from the use of this indicator.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Built for traders who demand clarity, confidence, and precision from their charts. Indicador
