lib_plot_composite_objects

23 de set. de 2023

Library "lib_plot_composite_objects"

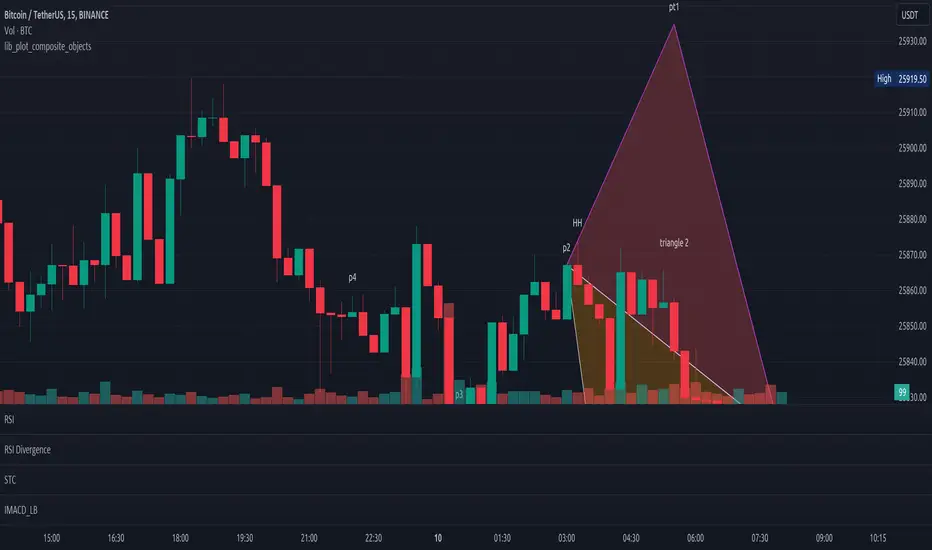

library building on top of lib_plot_objects for composite objects such as Triangles and Polygons. heavily using chart.points

method tostring(this, date_format)
  Namespace types: Triangle
  Parameters:
    this (Triangle)
    date_format (simple string)

method tostring(this, date_format)
  Namespace types: TriangleFill
  Parameters:
    this (TriangleFill)
    date_format (simple string)

method tostring(this, date_format)
  Namespace types: Polygon
  Parameters:
    this (Polygon)
    date_format (simple string)

method tostring(this, date_format)
  Namespace types: PolygonFill
  Parameters:
    this (PolygonFill)
    date_format (simple string)

method tostring(this, date_format)
  Namespace types: Triangle[]
  Parameters:
    this (Triangle[])
    date_format (simple string)

method tostring(this, date_format)
  Namespace types: Polygon[]
  Parameters:
    this (Polygon[])
    date_format (simple string)

method tostring(this, date_format)
  Namespace types: TriangleFill[]
  Parameters:
    this (TriangleFill[])
    date_format (simple string)

method tostring(this, date_format)
  Namespace types: PolygonFill[]
  Parameters:
    this (PolygonFill[])
    date_format (simple string)

method create_triangle(this, b, c, args)
  Namespace types: chart.point
  Parameters:
    this (chart.point)
    b (chart.point)
    c (chart.point)
    args (LineArgs type from robbatt/lib_plot_objects/32)

method create_triangle(this, c)
  Namespace types: D.Line
  Parameters:
    this (Line type from robbatt/lib_plot_objects/32)
    c (chart.point)

method create_polygon(points, args)
  Namespace types: chart.point[]
  Parameters:
    points (chart.point[])
    args (LineArgs type from robbatt/lib_plot_objects/32)

method create_polygon(start, others, args)
  Namespace types: chart.point
  Parameters:
    start (chart.point)
    others (chart.point[])
    args (LineArgs type from robbatt/lib_plot_objects/32)

method create_fill(this, fill_color)
  Namespace types: Triangle
  Parameters:
    this (Triangle)
    fill_color (color)

method create_fill(this, fill_color)
  Namespace types: Polygon
  Parameters:
    this (Polygon)
    fill_color (color)

method create_center_label(this, txt, args, tooltip)
  Namespace types: Triangle
  Parameters:
    this (Triangle)
    txt (string)
    args (LabelArgs type from robbatt/lib_plot_objects/32)
    tooltip (string)

method create_label(this, txt, args, tooltip)
  Namespace types: Polygon
  Parameters:
    this (Polygon)
    txt (string)
    args (LabelArgs type from robbatt/lib_plot_objects/32)
    tooltip (string)

method nz(this, default)
  Namespace types: Triangle
  Parameters:
    this (Triangle)
    default (Triangle)

method nz(this, default)
  Namespace types: TriangleFill
  Parameters:
    this (TriangleFill)
    default (TriangleFill)

method nz(this, default)
  Namespace types: Polygon
  Parameters:
    this (Polygon)
    default (Polygon)

method nz(this, default)
  Namespace types: PolygonFill
  Parameters:
    this (PolygonFill)
    default (PolygonFill)

method enqueue(id, item, max)
  Namespace types: Triangle[]
  Parameters:
    id (Triangle[])
    item (Triangle)
    max (int)

method enqueue(id, item, max)
  Namespace types: Polygon[]
  Parameters:
    id (Polygon[])
    item (Polygon)
    max (int)

method enqueue(id, item, max)
  Namespace types: TriangleFill[]
  Parameters:
    id (TriangleFill[])
    item (TriangleFill)
    max (int)

method enqueue(id, item, max)
  Namespace types: PolygonFill[]
  Parameters:
    id (PolygonFill[])
    item (PolygonFill)
    max (int)

method update(this, a, b, c)
  Namespace types: Triangle
  Parameters:
    this (Triangle)
    a (chart.point)
    b (chart.point)
    c (chart.point)

method update(this, points)
  Namespace types: Polygon
  Parameters:
    this (Polygon)
    points (chart.point[])

method delete(this)
  Namespace types: Triangle
  Parameters:
    this (Triangle)

method delete(this)
  Namespace types: TriangleFill
  Parameters:
    this (TriangleFill)

method delete(this)
  Namespace types: Polygon
  Parameters:
    this (Polygon)

method delete(this)
  Namespace types: PolygonFill
  Parameters:
    this (PolygonFill)

method delete(this)
  Namespace types: Triangle[]
  Parameters:
    this (Triangle[])

method delete(this)
  Namespace types: TriangleFill[]
  Parameters:
    this (TriangleFill[])

method delete(this)
  Namespace types: Polygon[]
  Parameters:
    this (Polygon[])

method delete(this)
  Namespace types: PolygonFill[]
  Parameters:
    this (PolygonFill[])

method draw(this, ab_args_override, ac_args_override, bc_args_override)
  Namespace types: Triangle
  Parameters:
    this (Triangle)
    ab_args_override (LineArgs type from robbatt/lib_plot_objects/32)
    ac_args_override (LineArgs type from robbatt/lib_plot_objects/32)
    bc_args_override (LineArgs type from robbatt/lib_plot_objects/32)

method draw(this)
  Namespace types: Polygon
  Parameters:
    this (Polygon)

method draw(this)
  Namespace types: TriangleFill
  Parameters:
    this (TriangleFill)

method draw(this)
  Namespace types: PolygonFill
  Parameters:
    this (PolygonFill)

method draw(this)
  Namespace types: Triangle[]
  Parameters:
    this (Triangle[])

method draw(this)
  Namespace types: TriangleFill[]
  Parameters:
    this (TriangleFill[])

method draw(this)
  Namespace types: Polygon[]
  Parameters:
    this (Polygon[])

method draw(this)
  Namespace types: PolygonFill[]
  Parameters:
    this (PolygonFill[])

method apply_style(this, args)
  Namespace types: Triangle
  Parameters:
    this (Triangle)
    args (LineArgs type from robbatt/lib_plot_objects/32)

method apply_style(this, args)
  Namespace types: Polygon
  Parameters:
    this (Polygon)
    args (LineArgs type from robbatt/lib_plot_objects/32)

method apply_style(this, args)
  Namespace types: Triangle[]
  Parameters:
    this (Triangle[])
    args (LineArgs type from robbatt/lib_plot_objects/32)

method apply_style(this, args)
  Namespace types: Polygon[]
  Parameters:
    this (Polygon[])
    args (LineArgs type from robbatt/lib_plot_objects/32)

Triangle
  Fields:
    a (chart.point): first Corner
    b (chart.point): second Corner
    c (chart.point): third Corner
    args (LineArgs type from robbatt/lib_plot_objects/32): Wrapper for reusable arguments for line.new()
    ab (Line type from robbatt/lib_plot_objects/32)
    ac (Line type from robbatt/lib_plot_objects/32)
    bc (Line type from robbatt/lib_plot_objects/32)

TriangleFill
  Fields:
    triangle (Triangle): The Triangle object
    plot (LineFill type from robbatt/lib_plot_objects/32): The linefill object to be added and plotted via draw()

Polygon
  Fields:
    points (chart.point[]): array of points that make up the Polygon
    center (chart.point): Center point of the Polygon, can be used for a label and will be center for PolygonFill
    args (LineArgs type from robbatt/lib_plot_objects/32): Wrapper for reusable arguments for line.new()
    plot (Line[] type from robbatt/lib_plot_objects/32): An array of Lines that form Polygon Border

PolygonFill
  Fields:
    poly (Polygon): the Polygon
    fill_color (series color): The color used to fill the space between the lines.
    plot (TriangleFill[])
